Description

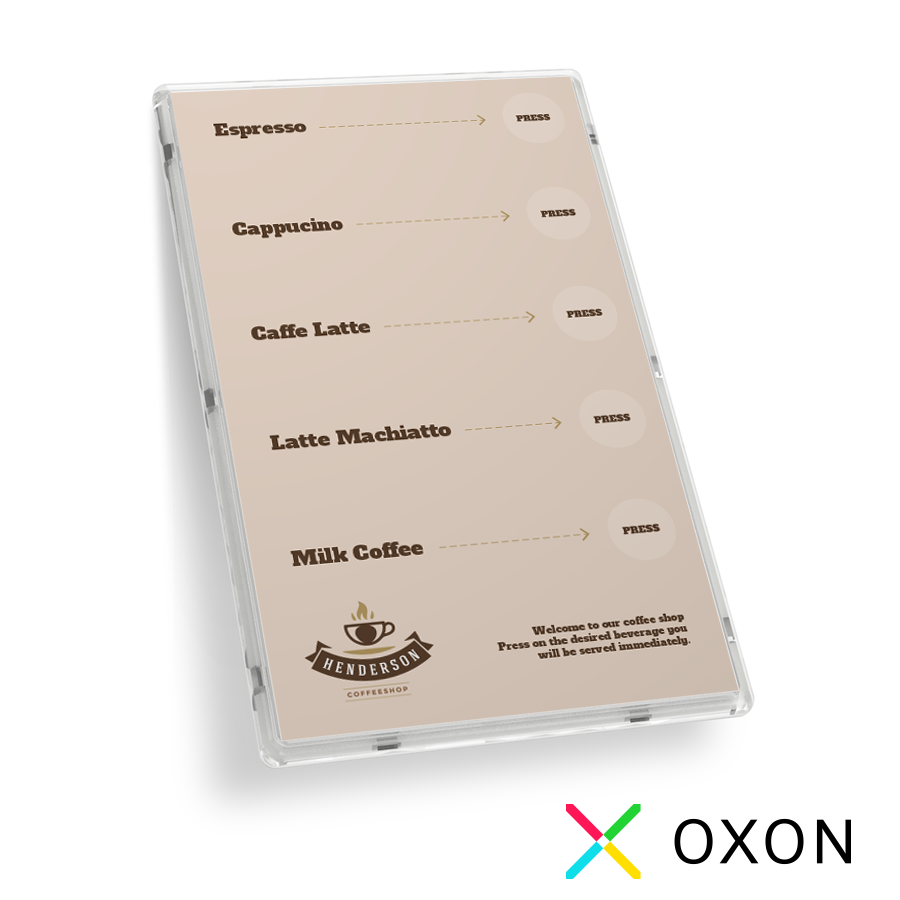

The Buttonboard is a flexible event triggering device with 6 touch sensor buttons, 6×8 RGB-LEDs, accelerometer, temperature-sensor, piezo and vibration motor. It can be configured with a free mobile app (BLE5.0) or with defined LoRa downlinks. The front paper can be changed to fit any use case. The 2400mAh battery leads to a run time of ~4years (12 uplinks/day).

Extended Features
Technical specs:


– 6 capactitive buttons

– 6 * 8 = 48 ultrabright multicolor LEDs

– CPU: BLUENRG-2

– RAM: 24 KB

– Flash: 256 MB

– Wireless connectivity: LoRaWan 868 Mhz, Bluetooth Low Power (BLE)

– Replacement litium battery: 2400 mAh

– Runtime up to 4 years (12 uplinks per day)

– Speaker

– Accelerometer

– Vibra motor

– Temperature sensor

Supported Regional Parameters
EU863-870
Supported Classes
Class A
Vertical Markets
Smart Buildings / Facilities Management|Smart Cities|Smart Environment|Smart Homes / Consumer|Smart Industry / Industrial IoT|Smart Infrastructure|Smart Metering / Smart Utilities|Transportation / Logistics / Supply Chain

Product / Service links

Buy Now URL(s): http://www.oxobutton.ch/products/button-board

Documentation

LoRaWAN EU Supplementary Device Info Questionnaire
File type: application/pdf
File size: 130.84 KB
EU Test Report
File type: application/pdf
File size: 275.51 KB
