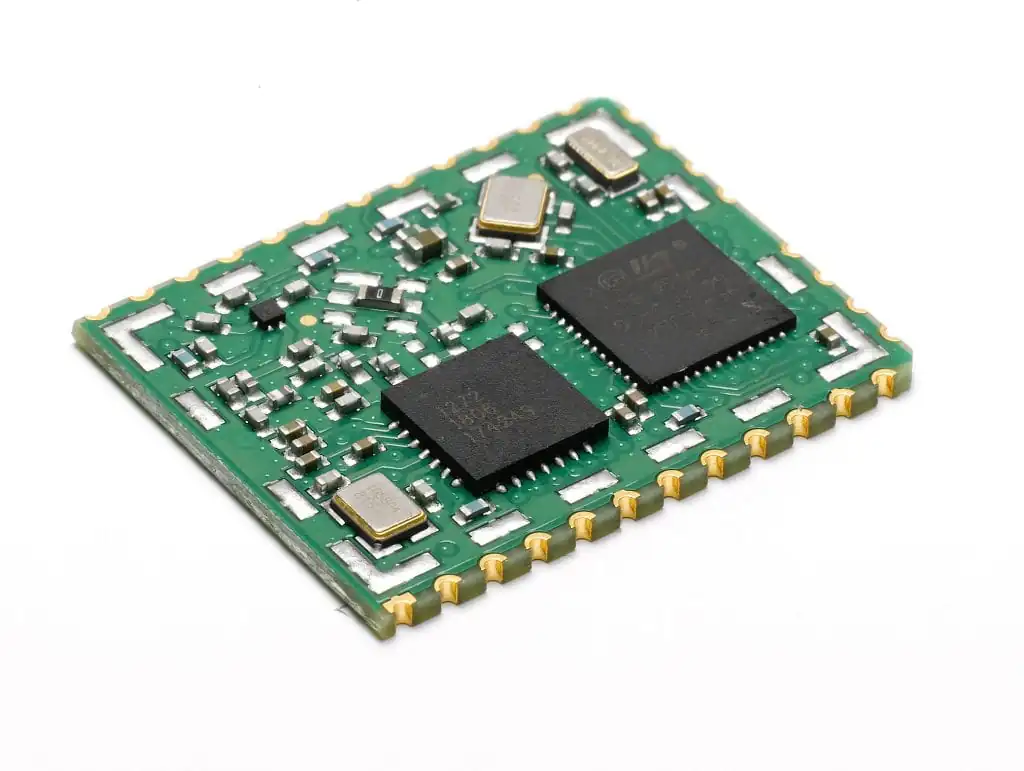

The iM880B-L from IMST GmbH is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and the Indian 865 band and combines a powerful Cortex-M3 controller with the LoRaWAN® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -137 dBm and a maximum output power of +19 dBm result in a link budget of more than 156 dB.
The iM880B-L is a compact and low-cost radio module that operates in the unlicensed 868 MHz band and combines a powerful Cortex-M3 controller with the new LoRaWAN® transceiver SX1272 of Semtech Corporation. A sensitivity of up to -138 dBm and a maximum output power of +19 dBm results in a link budget of more than 156 dB. Even when reducing the output power to +14 dBm ranges beyond 15 km are possible in free space.
The iM880B uses Semtech’s patented LoRaWAN® modulation technique which combines spread spectrum modulation and forward error correction techniques to increase the range and robustness of radio communication links compared with traditional FSK or OOK based modulation.
Using the iM880B in an application minimizes the need for an expensive and time-consuming RF development. Fast time to market is possible with this pre-qualified module.
Embedded Software:
The iM880B-L can be ordered with a pre-programmed embedded protocol stack (iM880B-L_LoRaWAN):
It enables Low Power Wide Area Networks (LPWANs) for Internet-of-Things (IoT) and Machine-to Machine (M2M) applications and supports Activation By Personalization (ABP) or Over The Air (OTA) activation. It comes with the WiMOD LoRaWAN® HCI interface and allows easy configuration.
Additionally it is possible to integrate the application on the module’s MCU thanks to the Github open source code and it is supported by MBed OS. For further information please contact sales@imst.de
Key features highlights:
– Compact module 20.0 x 25.0 x 2 mm
– LoRaWAN® modulation technology
– Sensitivity down to -138 dBm
– UART, SPI and I²C interface
– Digital inputs and outputs
– Analog inputs
– Supply voltage range from 2.4 to 3.6 V
– RF interface optimized to 50 Ohm
– Output power level up to +19 dBm
– High link budget up to 15 dB
– Range up to 15000m (Line of Sight)
– STM32L151CxU6Axx
– Pre-Certified according to EN 300 220
