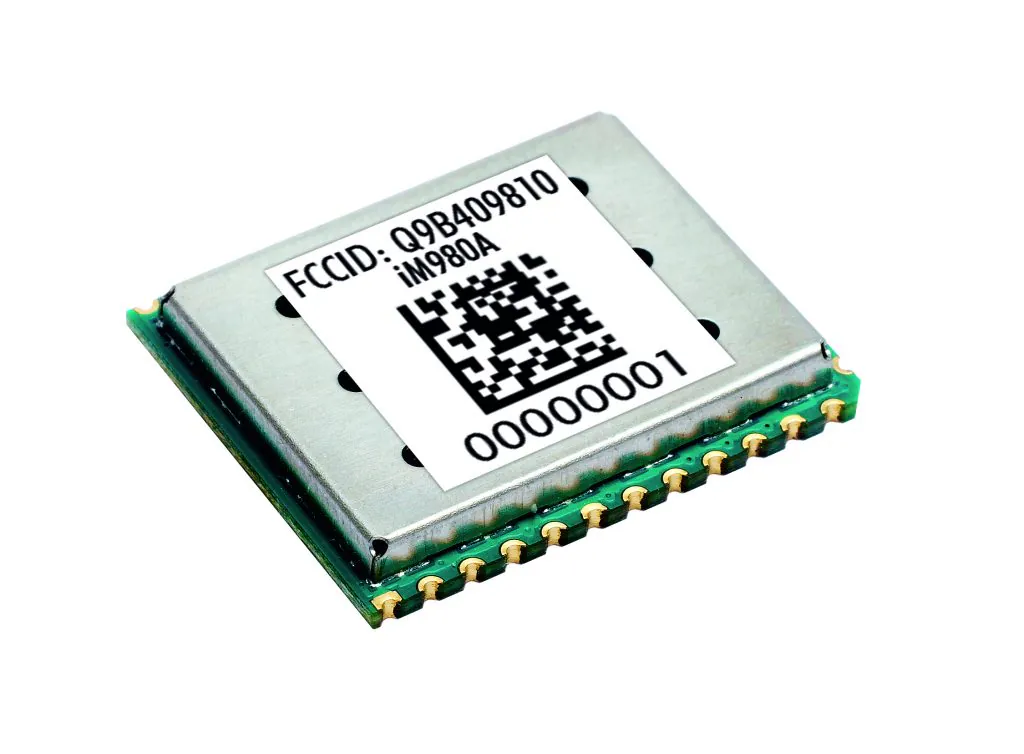

iM980A-L Radio Module US915
The iM980A-L operates in the unlicensed 915 MHz band and combines a powerful Cortex® M3 controller with the LoRa® transceiver. The iM980A has received Federal Communications Commission (FCC) modular approval.
The iM980A-L operates in the unlicensed 915 MHz band and combines a powerful Cortex® M3 controller with the LoRa® transceiver. The iM980A has received Federal Communications Commission (FCC) modular approval.
The iM980A-L is a compact and low-cost radio module that operates in the unlicensed 915 MHz band and combines a powerful Cortex-M3 controller with the LoRaWAN® transceiver of Semtech Corporation. A sensitivity of down to -137.5 dBm and a maximum output power of +17.5 dBm results in a link budget of more than 155 dB.
Embedded Software:
The iM980A-L can be ordered with a pre-programmed LoRaWAN® embedded protocol stack: It enables Low Power Wide Area Networks (LPWANs) for Internet-of-Things (IoT) and Machine-to Machine (M2M) applications and supports Activation By Personalization (ABP) or Over The Air (OTA) activation. It comes with the WiMOD LoRaWAN® HCI interface and allows easy configuration.
Additionally it is possible to integrate the application on the module’s MCU thanks to the Github open source code. For further information please contact sales@imst.de
