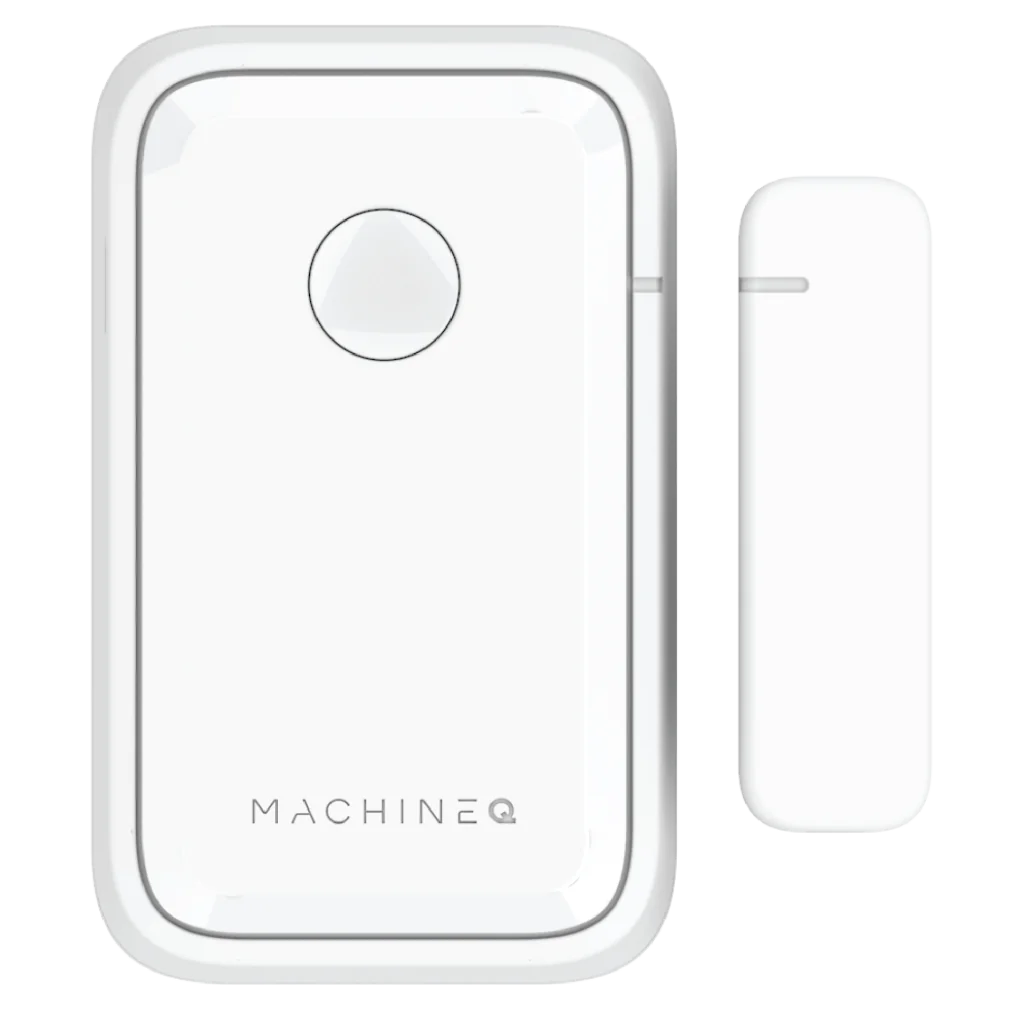

Accelerate IoT Innovation with the MQflex Multi-Sensor Device
The MQflex 9s is a LoRaWAN certified multi-sensor device that’s proven at scale for enterprise deployments. With sensors capable of measuring temperature, humidity, water leak, push-button activity, door open/close activity, pressure, acceleration, and more, the MQflex 9s enables a wide range of use cases including food safety and compliance, environmental monitoring, and more.
Engineered specifically for the MachineQ IoT network platform, the MQflex leverages custom-tailored firmware that drives superior integration, performance, dependability, and data delivery at scale. Supporting a wide temperature operating range and long battery life, this UL-listed device is currently used by several enterprise clients across the Food Services, Life Sciences, and Facilities Management verticals.
Features & Benefits
- Supports wide operating range (-40°C to +60°C)
- Supports 3 to 5 years of continuous use from a single, replaceable battery
- Engineered by MachineQ for enterprise-grade use with high accuracy and superior RF performance
- Supports firmware updates over-the-air (FUOTA) via BLE and LoRaWAN for superior performance and ongoing security enhancements
- Supports remote configuration via downlink, providing control and flexibility at scale
Extended Features
Extended Features
TECHNICAL SPECIFICATIONS
SENSORS
TEMPERATURE
Sensing range: −40°C to +60°C
Accuracy: ±0.5 −40°C to +60°C
HUMIDITY
Sensing range: 0% to 100% RH
Accuracy: 3% RH over 20% – 80% RH at 25°C
WATER LEAK
Adjustable sensitivity
PUSH BUTTON
PRESSURE
Sensing range: 300 hPa to 1100 hPa
ACCELERATION
Configurable sensing range: ±2/±4/±8/±16 g
Resolution: 1 mg
Sampling rate: 0, 1.6, 12.5, 26, 52, 104, 208, 416, 833, 1660, 3330, 6660 Hz
MAGNETIC FIELD
Sensing range: ± 16 gauss
Resolution: 1 mgauss
ANGULAR ROTATION
Configurable sensing range: ±125, ±245, ±500, ±1000, ±2000 mds
Sampling rate: 0, 1.6, 12.5, 26, 52, 104, 208, 416, 833, 1660,|3330, 6660 Hz
REED SWITCH
Pull-In Range: 10-15 AT
Average Activation Distance: 6.5 mm
BATTERY
Replaceable: Saft LS14500
Est. Life: 3-5 years
RF
LoRa
NFC
2.4 GHz Low Energy
INSTALLATION
Adhesive
Optional screw mount
Optional magnetic mounting bracket
Optional stainless-steel ball chain
CERTIFICATION
LoRaWAN Certified
UL 62368-3
FCC Part 15 Class B
RoHS
FDA approved food safe plastic
Optional NIST Traceable Calibration
ENVIRONMENTAL
-40°C to +60°C
0% – 100% RH
IP65
HARDWARE SPECIFICATIONS
DIMENSIONS
64.5mm x 39.5mm x 27mm
47mm x 13mm x 22.5mm
Tech Specs
Supported Regional Parameters
- US902-928
Supported Classes
- Class A (Basic)
LoRaWAN Specification
- Current Versions
- 1.0.2
Markets
Vertical Markets
- Smart Buildings / Facilities Management
- Smart Cities
- Smart Environment
- Smart Industry / Industrial IoT
- Smart Infrastructure
- Smart Metering / Smart Utilities
- Transportation / Logistics / Supply Chain
Regional Markets
- North America
Regulatory Certifications
- FCC (United States)
