RAK7243 LPWAN Developer Gateway

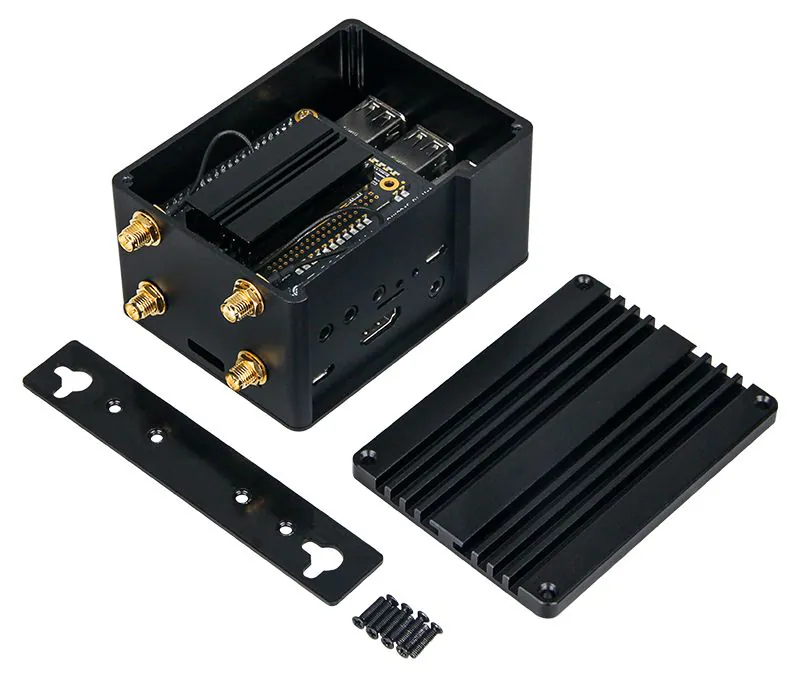

The RAK7243C is a fully-fledged 8 channel LoRaWAN™ gateway that is Class A and C compliant. It consists of the following modules: RAK2245, RAK2013 and Raspberry Pi 3B+.
LoRa Alliance®
The leading open global standard for secure, carrier-grade IoT LPWAN connectivity.
LoRaWAN® Marketplace
Description
Description
The RAK7243C is a fully-fledged 8 channel LoRaWAN™ gateway that is Class A and C compliant. It consists of the following modules: RAK2245, RAK2013 and Raspberry Pi 3B+.
At its core is the Raspberry Pi 3B+, which integrates all the other hardware components and runs the OS. The RAK2245 is the concentrator module, playing the role of a LoRa® transceiver. The RAK2013 provides for cellular backhaul (in addition to the Wi-Fi and Ethernet of the Raspberry Pi 3B+)
Software-wise one could choose to either go with TTN or LoRa® Server in addition to bringing his own solution. TTN is more suitable for public, cloud deployment. LoRa® Server provides a solution that can be run on a private server or the gateway itself.
Thus the RAK7243C is a flexible solution suitable for both small scale projects, as well as large scale industrial solutions. It provides a variety of connectivity options and its size and weight make it ideal for indoor deployment.
Complete documentation of this product can be found on our website documentation page.
To know the difference between EG95-E and EG95-NA, please refer to the following table:
FrequencyEG95-EEG95-NA
LTE FDDB1/B3/B7/B8/B20/B28AB2/B4/B5/B12/B13
WCDMAB1/B8B2/B4/B5
GSM/EDGEB3/B8
RegionEMEANorth America
Carrier Certification*Verizon/ AT&T/ T-Mobile/ Telus/ U.S. Cellular/ Rogers
Regulatory Certification*GCF/ CE/ RCM/ FACGCF/ FCC/ PTCRB/ IC
Other Certifications*WHQLWHQL
* Certifications are for the RAK2013 Cellular Pi HAT Module only, not the whole device.
Key Features
- Preassembled, fully functioning LoRaWAN® Gateway
- Full LoRaWAN® Stack support (version 1.0.2)
- Supports all 8 channels and spreading factors (SF7-SF12)
- Band support: 433MHz, 470MHz, 865MHz, 868MHz, 915MHz, 920MHz, 923MHz
- Tx Power: 27 dBm Max
- RX Sensitivity: -139dBm
- The new design integrates Ublox MAX-7Q GPS module
- Quectel BG96/EG95 (depending on chosen configuration)
Packaging
- Product Dimensions: 150mm x 90mm x 90mm
- Product Weight: 0.6kg
Markets
Vertical Markets
- Smart Agriculture / Farming
- Smart Buildings / Facilities Management
- Smart Cities
- Smart Environment
- Smart Homes / Neighborhood
- Smart Industry / Industrial IoT
- Smart Infrastructure
- Smart Metering / Smart Utilities
- Transportation / Logistics / Supply Chain
Regional Markets
- Worldwide
Regulatory Certifications
- FCC (United States)
