TEKTELIC Communications Inc.

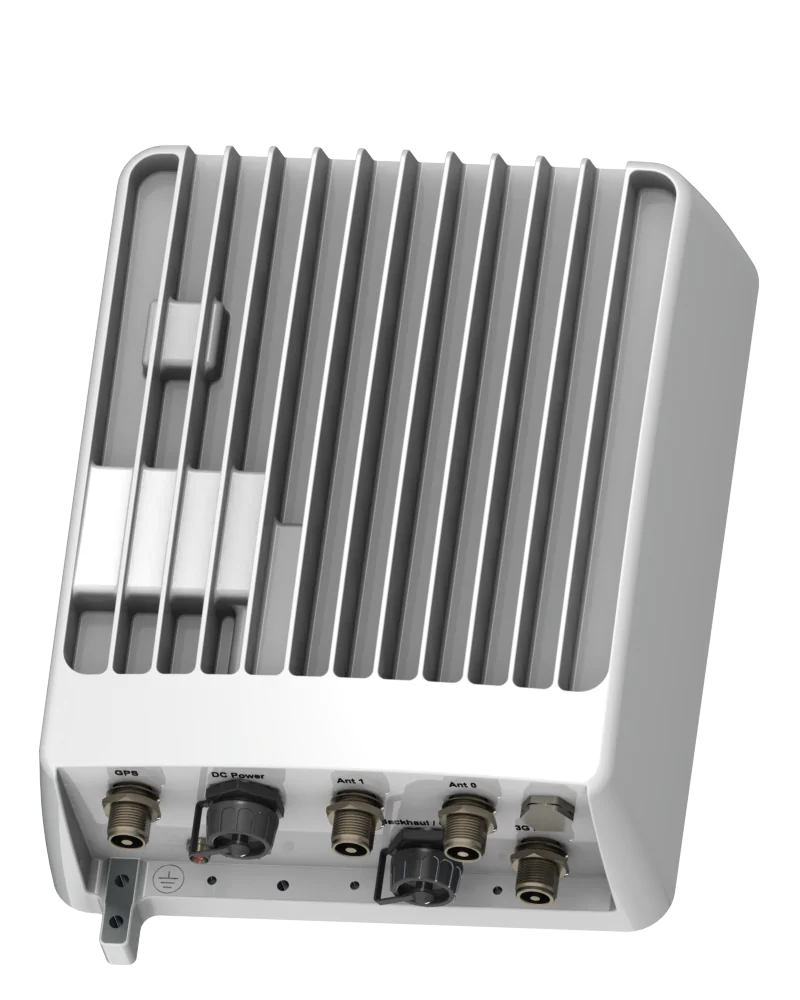

KONA Mega IoT Gateway

TEKTELIC's KONA Mega IoT Gateway provides network operators with a carrier grade product for the deployment of LoRaWAN™ Internet of Things networks. The Gateway enables massive scalability in a compact form factor by supporting up to 12 million messages per day.

Website

http://www.tektelic.com

Documentation

Documentation
File type: application/pdf
File size: 396.09 KB
Documentation
File type: application/pdf
File size: 396.54 KB

Description

Description

TEKTELIC’s KONA Mega IoT Gateway provides network operators with a carrier grade product for the deployment of LoRaWAN™ Internet of Things networks. The Gateway enables massive scalability in a compact form factor by supporting up to 12 million messages per day.

It is ideal for public and private network operators that require Full Duplex, multiple Rx and Tx Channels, cost effective and reliable LoRaWAN™ gateways to maximise their network investment for years to come.

  • Frequency Duplex 72 Rx / 4Tx
  • Dual Antenna Support for Rx Diversity
  • Double Simultaneous Tx Channels
  • High Linearity LNA / Receiver
  • Integrated Bandpass Filter
  • Precise Network Synchronization (GPS_
  • Integrated GPS Holdover
  • 1 Watt (30dBm) Tx Power
  • Geolocalization Support
  • Hardened Carrier Grade (IP67) Enclosure
  • Integrated Cellular 3G/4G Modem
  • High availability carrier grade design with support of in-service configuration and software updates.
  • Environmentally hardened aluminium enclosure fully tested to withstand extreme temperature conditions.
  • Full duplex operation making all receive and transmit channels available simultaneously.
  • Excellent isolation between the Tx and Rx bands as well as out of band rejection of Cellular and Paging networks.
  • Day-One scalability with support of up to 12 million received messages per day.
    Copper
  • Easy to deploy supporting different backhaul and power options.
  • Fully integrated with the broader eco-system of LoRa™ network servers and sensors.

Tech Specs

Supported Regional Parameters

    • AS923
    • AU915-928
    • CN470-510
    • CN779-787
    • EU433
    • EU863-870
    • IN865-867
    • KR920-923
    • RU864-870
    • US902-928

Supported Classes

    • Class A (Basic)
    • Class B (Multimode)
    • Class C

LoRaWAN Specification

    • Current Versions
      • 1.0.2
    • Old Versions
      • 1.0
      • 1.0.1

Markets

Vertical Markets

    • Smart Agriculture / Farming
    • Smart Cities
    • Smart Environment
    • Smart Industry / Industrial IoT
    • Smart Infrastructure
    • Smart Metering / Smart Utilities
    • Transportation / Logistics / Supply Chain

Regional Markets

    • Asia/South Pacific
    • Europe
    • Middle East
    • North America
    • South/Latin America
    • Worldwide

Regulatory Certifications

    • FCC (United States)
    • IC (Canada)
    • RED (Europe)
    • TELEC (Japan)

About TEKTELIC Communications Inc.

About TEKTELIC Communications Inc.

Geographical Focus

  • Worldwide

Categories

  • Application server
  • End node (sensors or other devices)
  • Gateway
  • Hardware
  • Network server
  • Software
  • Turnkey Solution

Vertical Markets

  • Smart Agriculture / Farming
  • Smart Buildings / Facilities Management
  • Smart Cities
  • Smart Environment
  • Smart Homes / Consumer
  • Smart Industry / Industrial IoT
  • Smart Infrastructure
  • Smart Metering / Smart Utilities
  • Transportation / Logistics / Supply Chain
