ZENNER IoT Gateway Outdoor 16
ZENNER IoT gateway outdoor 16.
Read the latest Beecham Research report: Leveraging LoRaWAN® for Smart Cities. Download Now
ZENNER IoT gateway outdoor 16.
ZENNER IoT Gateways use high-performance
LoRaWAN® technology, which is characterised by
excellent building penetration and long-range network
availability. These features ensure the connectivity
of IoT sensors even under challenging environmental
and installation conditions. The ZENNER IoT gateway
outdoor 16 is ideally suited for LoRa network coverage
in rural and urban areas to receive values from
multiple sensors.
The device can be used across various sectors for a
variety of IoT applications and is an integral part of
ZENNER IoT system solutions.
With just a few gateways, entire cities can be covered.
Due to the very robust housing made of coated
aluminium, the gateway is very resilient to extreme
weather conditions and is characterized by a high
degree of reliability.

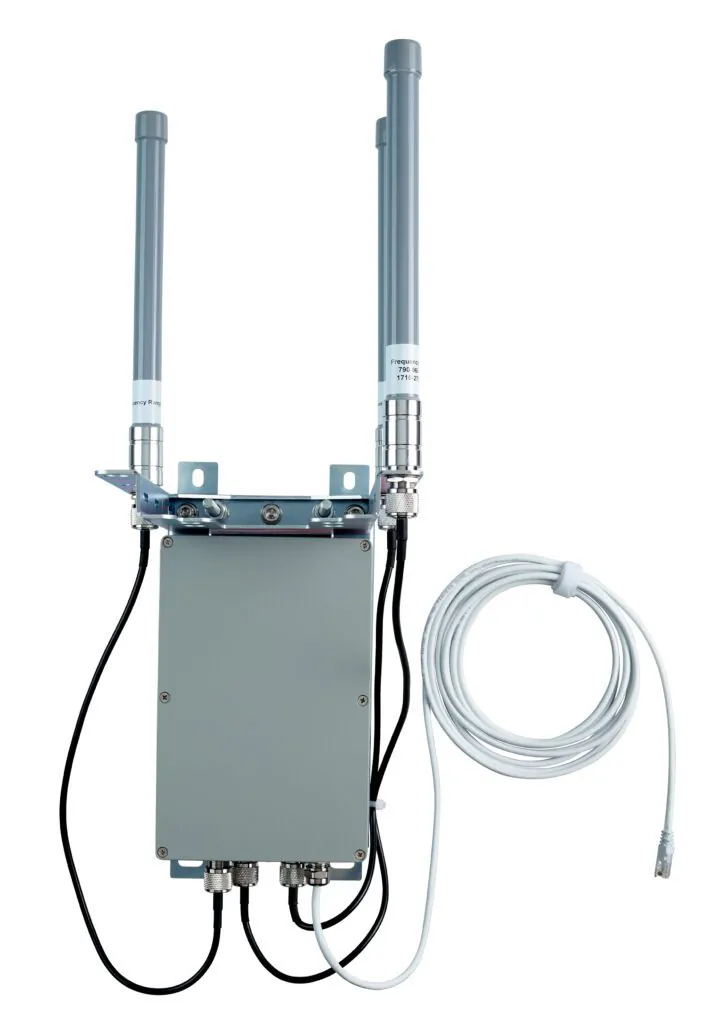

In addition to the two external LoRa antennas, the
ZENNER IoT gateway outdoor 16 also uses an external
LTE antenna to ensure the best possible connection to
the backend. It sends data between radio-ready end
devices in the property (heat cost allocators, water
or heat meters, smoke detectors, room sensors, and
much more) and the central LoRa network server.
The ZENNER IoT gateway outdoor 16 can integrate a
very high number of end devices into the LoRaWAN®
radio system
Performance characteristics in overview■ Suitable for LoRaWAN® IoT solutions
■ Bidirectional LoRaWAN® radio communication
■ Encrypted end-to-end data transmission (AES 128)
■ No storage of meter readings on the gateway
■ Fields of application in Europe
■ LoRaWAN®-Gateway modules according to reference
architecture 1.5
■ Support for the Semtech Packet Forwarder
■ Automatic change from mobile radio to Ethernet
backhaul (if available)
Applications
■ Smart City (Smart Parking, Smart Waste, Smart Lighting,…)
■ Monitoring of local network transformer stations
■ Readout of shaft meters
■ Asset Tracking
Scope of delivery
■ Gateway – pre-assembled on assembly support
■ Mounting bracket with nuts, spring ring and washers
■ 2x spacer sleeves for mounting bracket
■ 2x 868 MHz LoRaWAN®-Antennas
■ 1x LTE broadband antenna
■ 3x Antenna cable
■ Cable ties
■ 2x RJ45 Plugs
■ Equipotential bonding cable (16 mm²)
■ Network cable (5 m) mit PG cable gland
■ PoE injector
■ Power cord for PoE injector
■ PoE injector
■ Equipotential bonding cable
