Diehl Metering SAS

HRL-c-G3

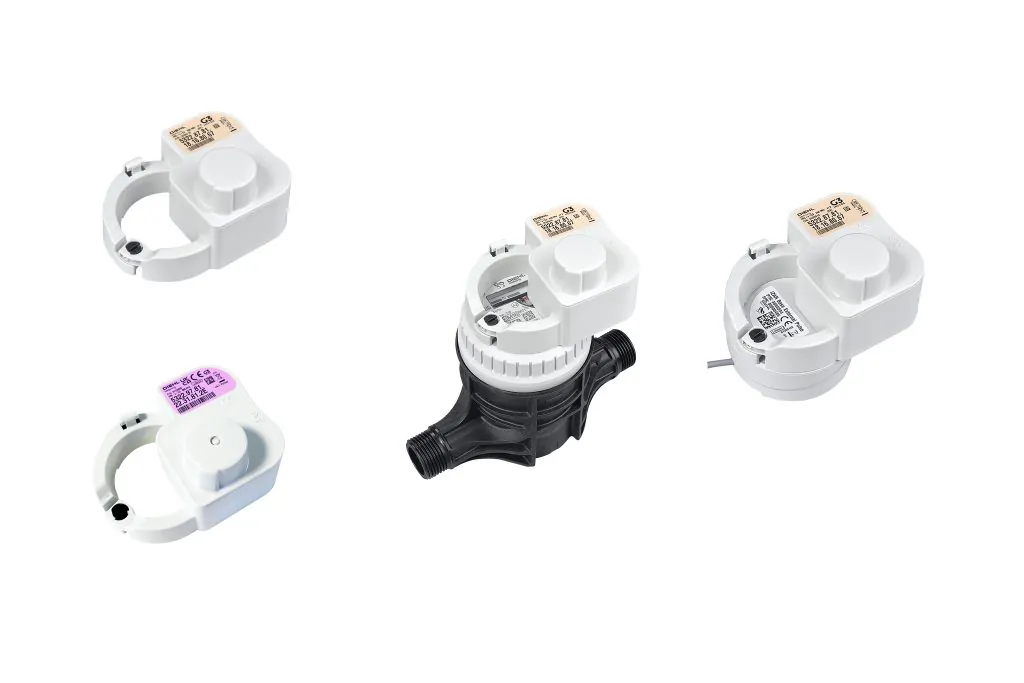

Diehl Metering compact LoRaWAN 868MHz IP68 device with inductive sensor. Ready for the IoT and compatible with the full range of Diehl Metering high performance mechanical water meters (velocity or volumetric). Thanks to complementary transmission protocols, this smart device is compatible with walk by/drive by reading solutions.

Website

http://www.diehl.com/fr/diehl-metering.html

Documentation

EU Test Report 1.0.1
File type: application/pdf
File size: 157.07 KB
EU Test Report 1.0.4
File type: application/pdf
File size: 268.41 KB
RF Performance Results - HRL-c-G3 ALTAIR V4 BRASS DN20
File type: application/pdf
File size: 1942.77 KB
RF Performance Results - HRL-c-G3 BE Pulse
File type: application/pdf
File size: 1933.04 KB
RF Performance Results - HRL-c-G3 ALTAIR V4 BRASS DN15
File type: application/pdf
File size: 1932.26 KB

Description

Description

Diehl Metering compact LoRaWAN 868MHz IP68 device with inductive sensor. Ready for the IoT and compatible with the full range of Diehl Metering high performance mechanical water meters (velocity or volumetric). Thanks to complementary transmission protocols, this smart device is compatible with walk by/drive by reading solutions. Furthermore, it can be used with any pulse-emitting meter when combined with our Izar BE Pulse interface. The device  is self-powered with a minimum battery life of 15 years.

Tech Specs

Supported Regional Parameters

    • EU863-870

Supported Classes

    • Class A (Basic)

LoRaWAN Specification

    • Current Versions
      • 1.0.4
    • Old Versions
      • 1.0.1

RF Performance Tested

    • 0dBm
    • 2dBm
    • 4dBm
    • 6dBm
    • 8dBm
    • 10dBm
    • 12dBm
    • 14dBm

Markets

Vertical Markets

    • Smart Metering / Smart Utilities

About Diehl Metering SAS

About Diehl Metering SAS

Geographical Focus

  • Europe

Categories

  • End node (sensors or other devices)
  • Gateway
  • Hardware
  • Module
  • Services
  • Software

Vertical Markets

  • Smart Cities
  • Smart Industry / Industrial IoT
  • Smart Infrastructure
  • Smart Metering / Smart Utilities
