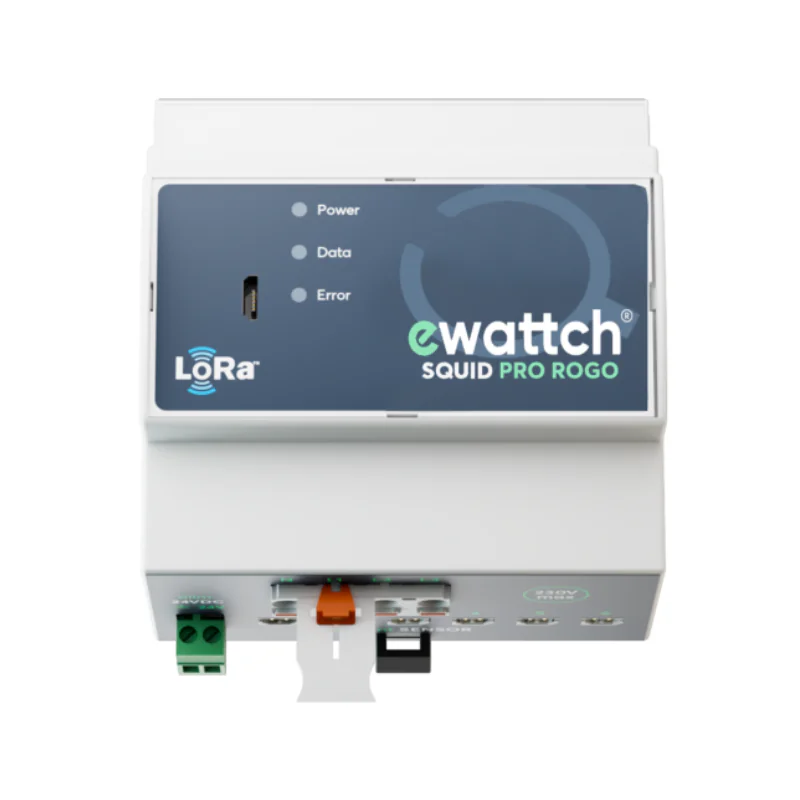

Squid Pro Rogowski
The SQUID PRO ROGOWSKI sensor is your ally for energy efficiency. It allows for electrical sub-metering, measuring current and voltage, in single-phase and three-phase installations, up to 3000A.
Registration is open LoRaWAN Live Munich, June 19-20. Register early to secure your space! Learn more >
Tags
The SQUID PRO ROGOWSKI sensor is your ally for energy efficiency. It allows for electrical sub-metering, measuring current and voltage, in single-phase and three-phase installations, up to 3000A.
This sensor helps you reducing your electricity consumption by measuring all the different circuits of your electrical panels to identify energy-intensive or over-consuming equipment. You can visualize, analyze, involve your team and implement actions with EwattchCloud’s platform.
Max 3000A effective per clamp.
5 standard modules (90mm).
Voltage: 5 VDC and maximum consumption: 0.5A
5°C to +60°C
Maximum 3 watts
90 x 88 x 62 mm
Mounting Mode DIN rail or wall mounting
12 current measurement inputs and 3 phase and neutral (230VAC) voltage inputs
