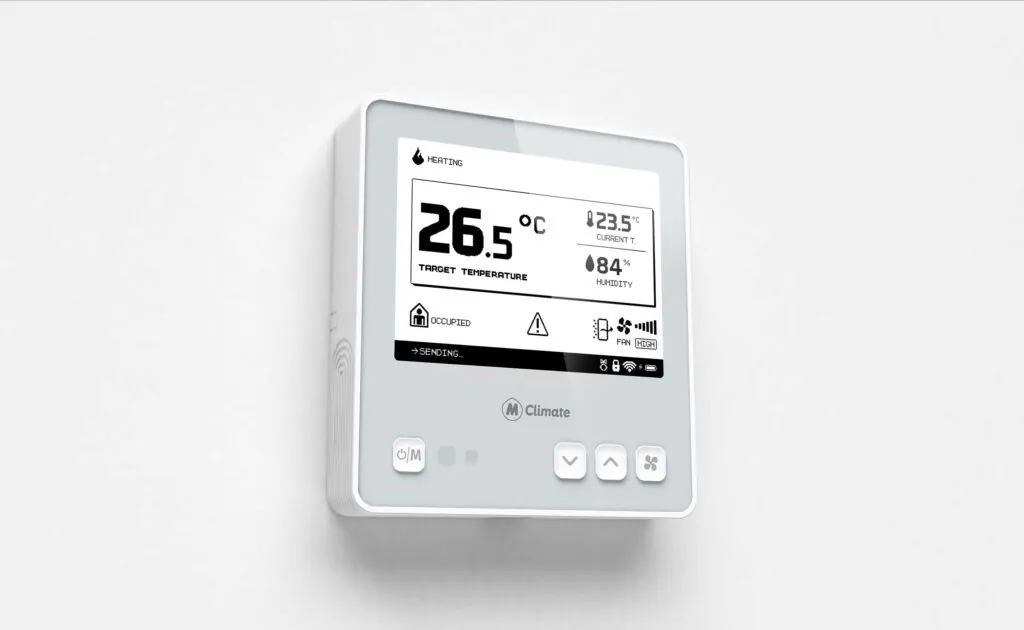

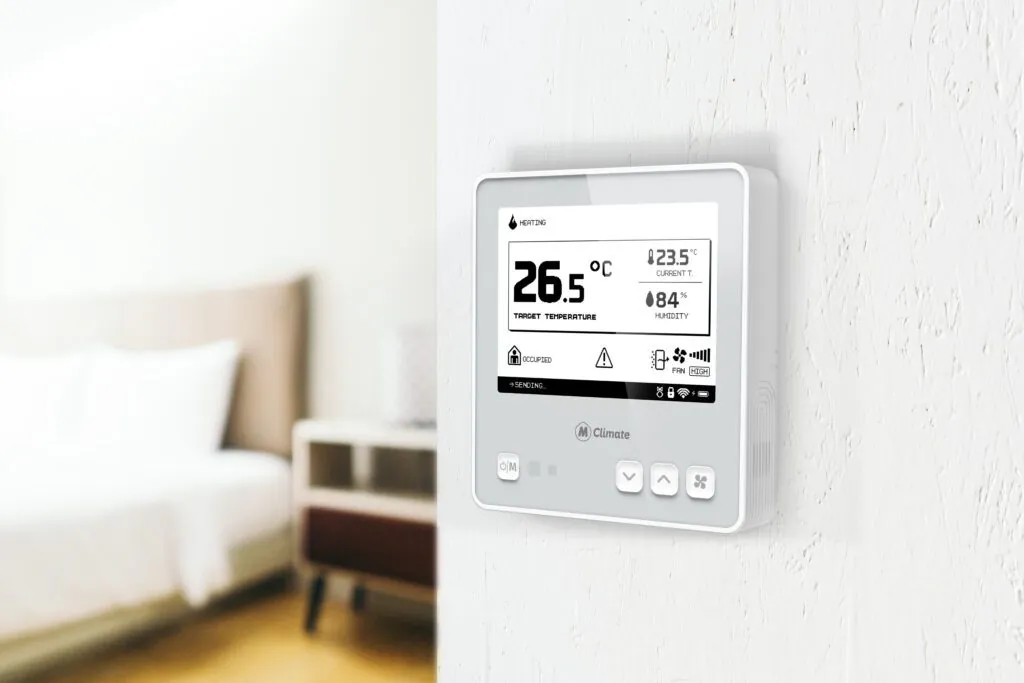

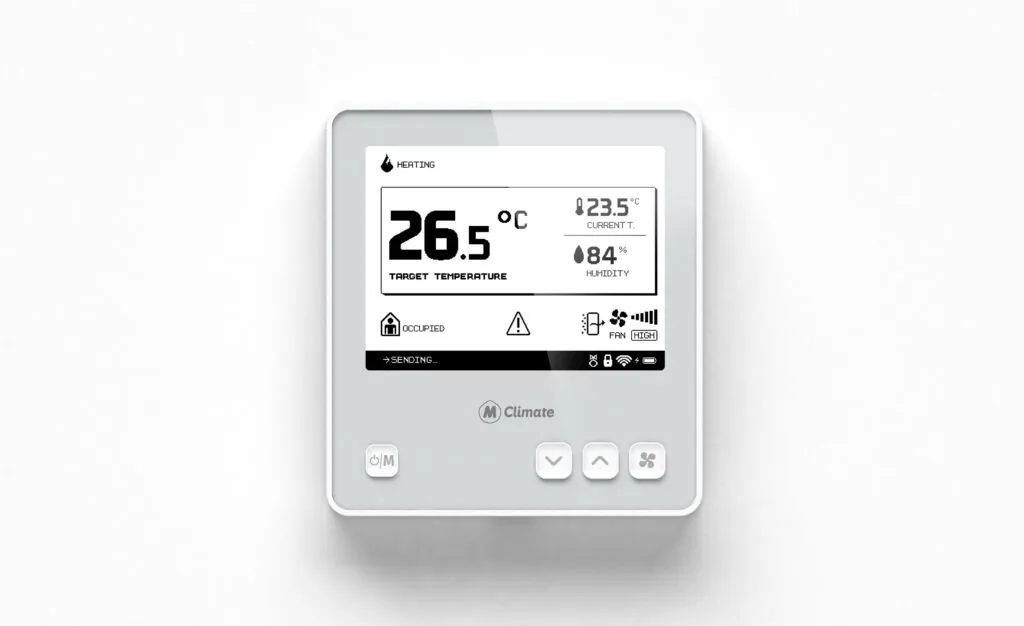

The Fan Coil Thermostat (FCT) is a built for LoRaWAN device for 2- and 4-pipe Fan Coil Units, accommodating 3-speed or ECM fans. Ideal for building retrofitting, it enhances energy efficiency and reduces heating/cooling expenses significantly. With its 4.2” e-ink fast refresh display it allows the end-users to change the target temperature and see current indoor conditions. Its fully open and transparent communication protocol allows seamless integration into different systems including MClimate Enterprise platform.

Extended Features

Features

Temperature and humidity sensor
Compatible with 2-pipe and 4-pipe Fan Coil Units (FCU)
Manual adjustment of target temperature
4.2″ e-ink display
Optional changeover temperature sensor
0-10V input/output
Child lock (ability to lock manual temperature adjustment)

Power supply

100-240VAC 50Hz

Compatibility

LoRaWAN 1.0.3, Class C device, EU868
Encryption: LoRaWAN End-to-end encryption (AES-CTR)
Activation: OTAA
Link budget: 130dB
RF Transmit Power: 14dB

All-in-one retrofit device

Enhance your building’s efficiency using the MClimate Fan Coil Thermostat LoRaWAN®, a single device capable of reducing your energy costs by 30%. Gain access to essential temperature and humidity data and empower end-users to control their AC systems, promoting a more comfortable and healthier indoor environment. Seamlessly retrofit your buildings while gaining room-by-room insights using a single device.

Open protocol

We maintain an open protocol, no vendor lock-in, for all of MClimate devices, allowing for seamless integration with different IoT platforms. This flexibility has enabled numerous IoT companies to seamlessly integrate our products into their preferred platforms. However, in our pursuit of delivering best-in-class IoT services, we at MClimate created the Enterprise software as a flexible, all-in-one IoT Buildings management platform.

Tech Specs

Supported Regional Parameters

AS923-2
AU915-928
EU863-870
EU868
US902-928
US915

Environment - IP Rating

Indoor

Supported Classes

Class C

Markets

Vertical Markets

Smart Buildings / Facilities Management

Regional Markets

Asia/South Pacific
Europe
North America
- United States

Regulatory Certifications

CE (Europe)
RED (Europe)
