MClimate CO2 Display for LoRaWAN®

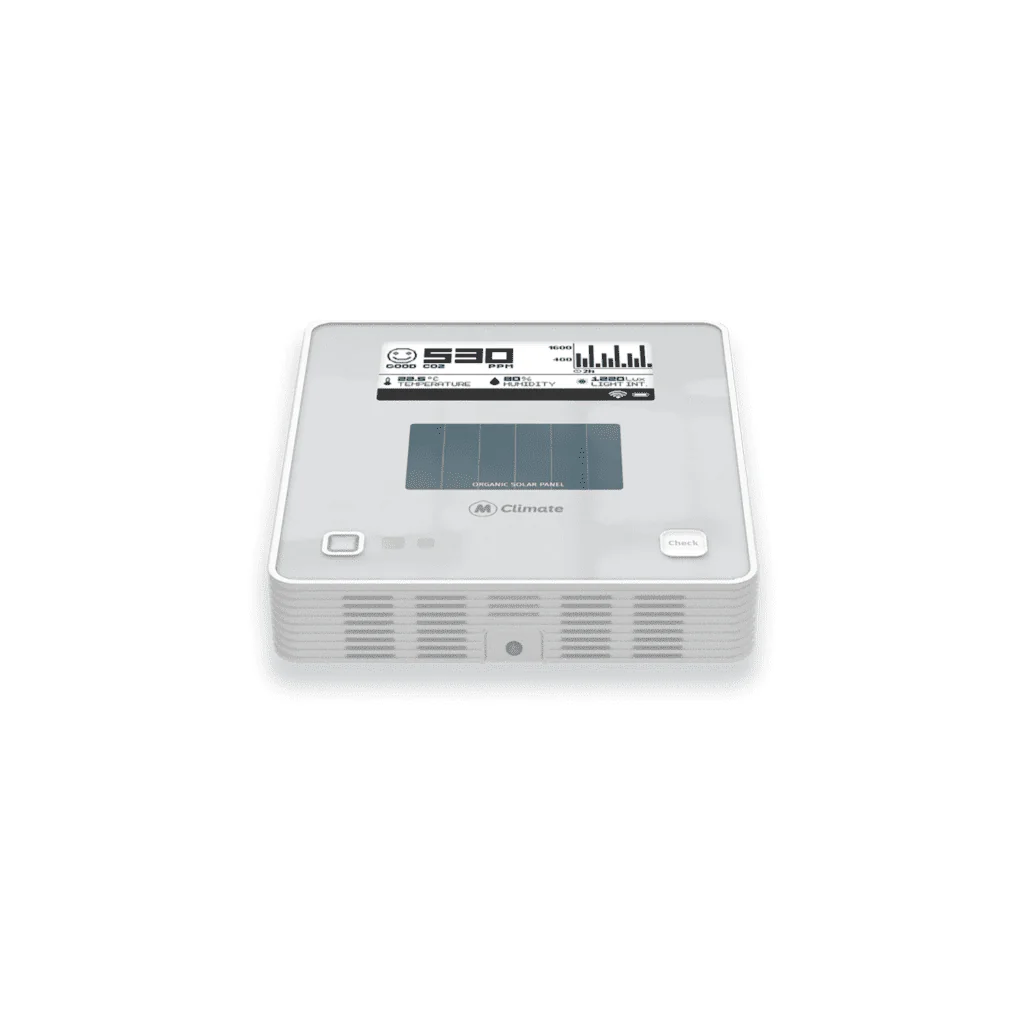

MClimate CO2 Display for LoRaWAN® is a stand-alone CO2 sensor powered entirely by solar energy using an organic solar panel.
Website
https://mclimate.euDocumentation
LoRa Alliance®
The leading open global standard for secure, carrier-grade IoT LPWAN connectivity.
LoRaWAN® Marketplace
Description
Description

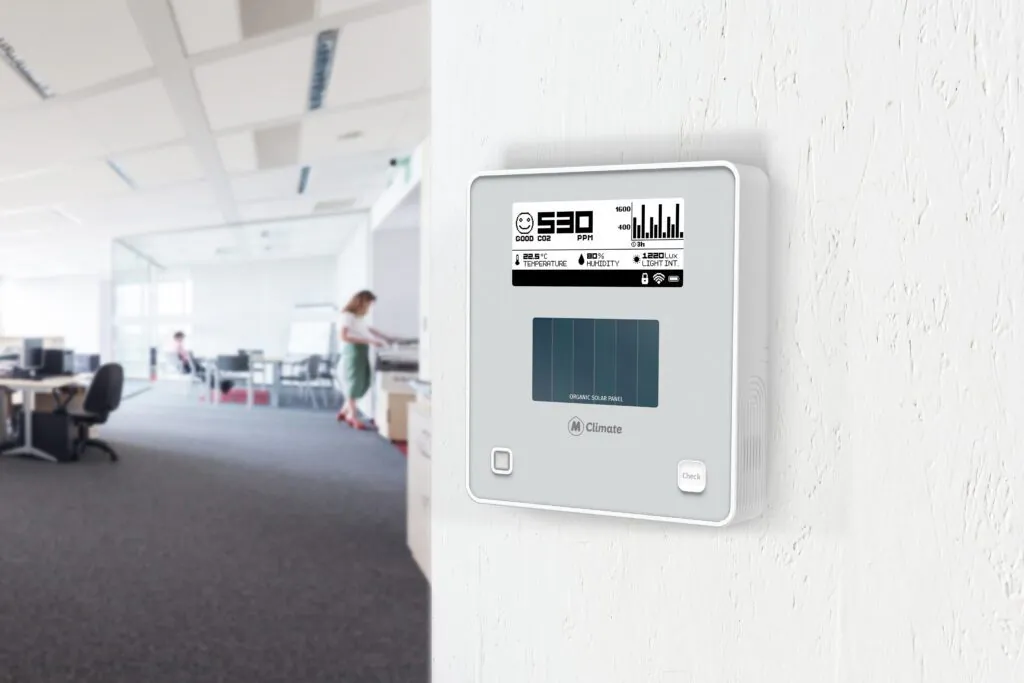

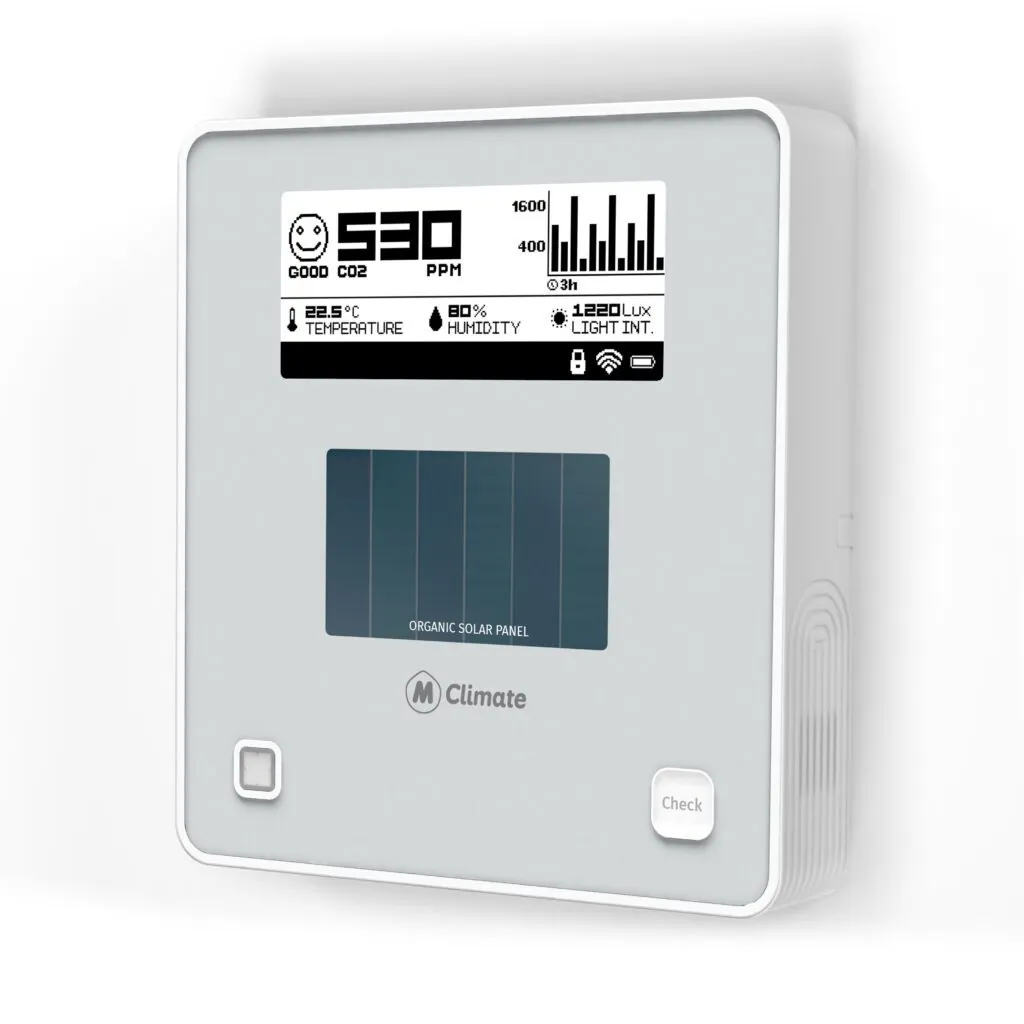

The device features a 2.9″ e-ink screen, sensor for movement (PIR), temperature and humidity sensor, LUX sensor and NDIR CO2 sensor. The user can see the current levels of CO2 as well as historical trend. The device sends an uplink when it detects movement as well as periodically. The data from the CO2 Display can be used in any LoRaWAN® compatible system, incl. Building Management Systems to control demand-based ventilation. Sensor information can be exposed as datapoints in Modbus, BACnet and KNX systems through the use of a special gateway.
Extended Features
Extended Features
Features
- Solar-powered and battery free
- CO2 Sensor (NDIR)
- PIR Sensor
- LUX Sensor
- 2.9″ e-ink display
- Temperature and Humidity Sensor
- Anti-theft bracket
- FUOTA
- Child lock
Power supply
Solar-powered Lithium-ion capacitor (LIC):
- AND/OR 2 or 4xAA 1.5VDC batteries
- AND/OR USB-C
Operating voltage:
- 2.5-3.8VDC powered by Solar Panel
- 2-3.6VDC powered by batteries
- 5VDC powered from USB-C
Expected battery life (depending on configuration and environment):
-
Indefinite powered by solar – up to 21 days in complete darkness
-
10+ years powered by AA batteriesDevice does not operate with rechargeable batteries!
Compatibility
- LoRaWAN 1.0.3, class A device, EU868
- Encryption: LoRaWAN End-to-end encryption (AES-CTR)
- Activation: OTAA
- Link budget: 130dB
- RF Transmit Power: 14dB
Sensors
1. CO2 sensor
- Resolution: 1ppm
- Accuracy: ±(30ppm +3% of reading)
- Range: 0-5000ppm
2. Temperature sensor
- Resolution: 0,1°C
- Accuracy: ±0,2°C (typ) – ±0,7°C (max)
3. Humidity sensor
- Resolution: 2%
- Accuracy: ±3% (typ) – ±3% (max)
4. PIR sensor (movement)
-
View of angle: X = 100° ; Y = 90°
5. LUX sensor
- Resolution: 1 LUX
- Accuracy: ±10%
- Range: 0 – 10 000 LUX
6. Organic Solar Cell
Mounting warning
Tech Specs
Supported Regional Parameters
- AS923-2
- AU915-928
- EU863-870
- EU868
- US902-928
- US915
Environment - IP Rating
- Indoor
Supported Classes
- Class A (Basic)
Markets
Vertical Markets
- Smart Agriculture / Farming
- Smart Buildings / Facilities Management
- Smart Logistics
Regional Markets
- Asia/South Pacific
- Europe
- North America
- United States
Regulatory Certifications
- CE (Europe)
- RED (Europe)
