PowerPilot M31
PowerPilot M31, complete energy monitoring for three-phase
LoRa Alliance®
The leading open global standard for secure, carrier-grade IoT LPWAN connectivity.
LoRaWAN® Marketplace
Description
Description

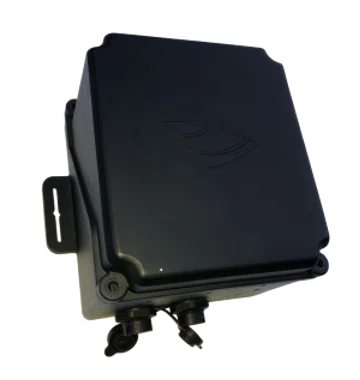

The M31 PowerPilot is a high-precision monitoring device designed for deep visibility across low-voltage networks. It delivers three-phase circuit monitoring for transformers, overhead LV lines, and interruptible loads—providing near-real-time parametric data across the entire LV estate. The device supports both routine and on-demand reporting of average and instantaneous values, with programmable thresholds that trigger immediate event notifications, enabling fast response to emerging issues.
Safety and reliability are core to the M31. It includes HV ConductorDown detection for rapid identification of fallen high-voltage lines, onboard Loop Impedance monitoring without additional hardware, and Last Gasp alerts powered by stored energy to report loss-of-power events. Communication is delivered over cost-effective LoRaWAN with optional WiFi for higher-bandwidth data transfers and firmware updates. The M31 is supplied in an IP67 enclosure with standard plugs or flying leads, and can be customised with CTs, voltage taps, binary inputs, and relay outputs for broader control and integration across the network.
Extended Features
Extended Features
Connectivity & Reporting
-
LoRaWAN two-way communication for reliable, low-cost network coverage.
-
Optional WiFi for higher-speed data transfer and firmware updates.
-
Routine and on-demand reporting of average and instantaneous values.
-
Programmable thresholds for real-time event alerts.
Safety & Fault Detection
-
HV ConductorDown detection for immediate identification of downed high-voltage conductors.
-
Loop Impedance monitoring without extra hardware.
-
Last Gasp capability for loss-of-power reporting using stored energy.
Hardware & Installation
-
Available with IP67 plugs or flying leads for flexible deployment.
-
Customisable with CTs and voltage taps for accurate three-phase monitoring.
-
Two binary inputs for monitoring additional equipment.
-
Optional 5A 230V relay outputs for remote switching and control.
-
Offered as a full IP67 weatherproof unit or as paired DIN-Rail components without an enclosure.
-
Variant available with additional enclosure and digital CTs for multi-circuit downstream monitoring and upstream phase visibility.
