LoRa Alliance®

The leading open global standard for secure, carrier-grade IoT LPWAN connectivity.

LoRaWAN® Marketplace
Submit a product
Product MarketplaceGatewayRobustel LG5120 Facility Edge Gateway for LoRaWAN with KNX, BACnet, M-Bus, Wi-Fi 6, 4G/LTE and Integrated LNS
NEW
Robustel

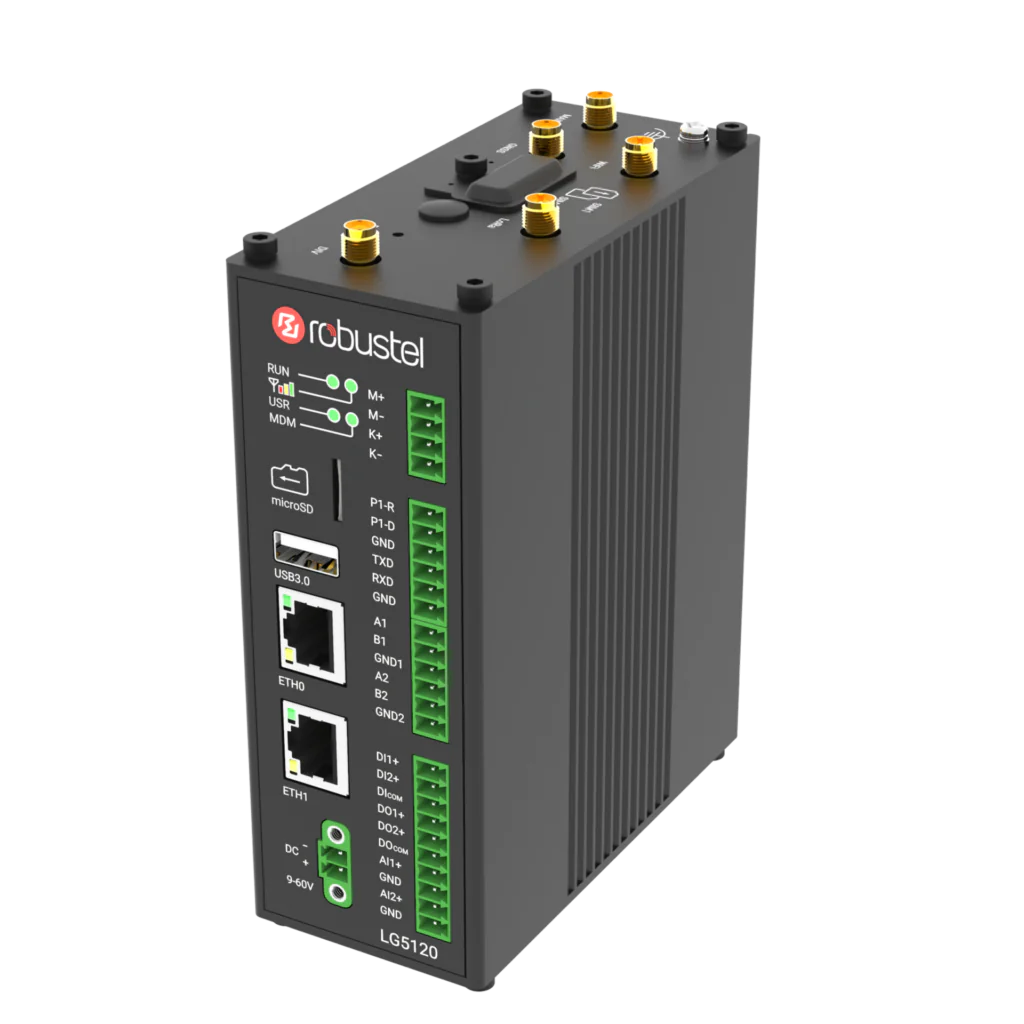

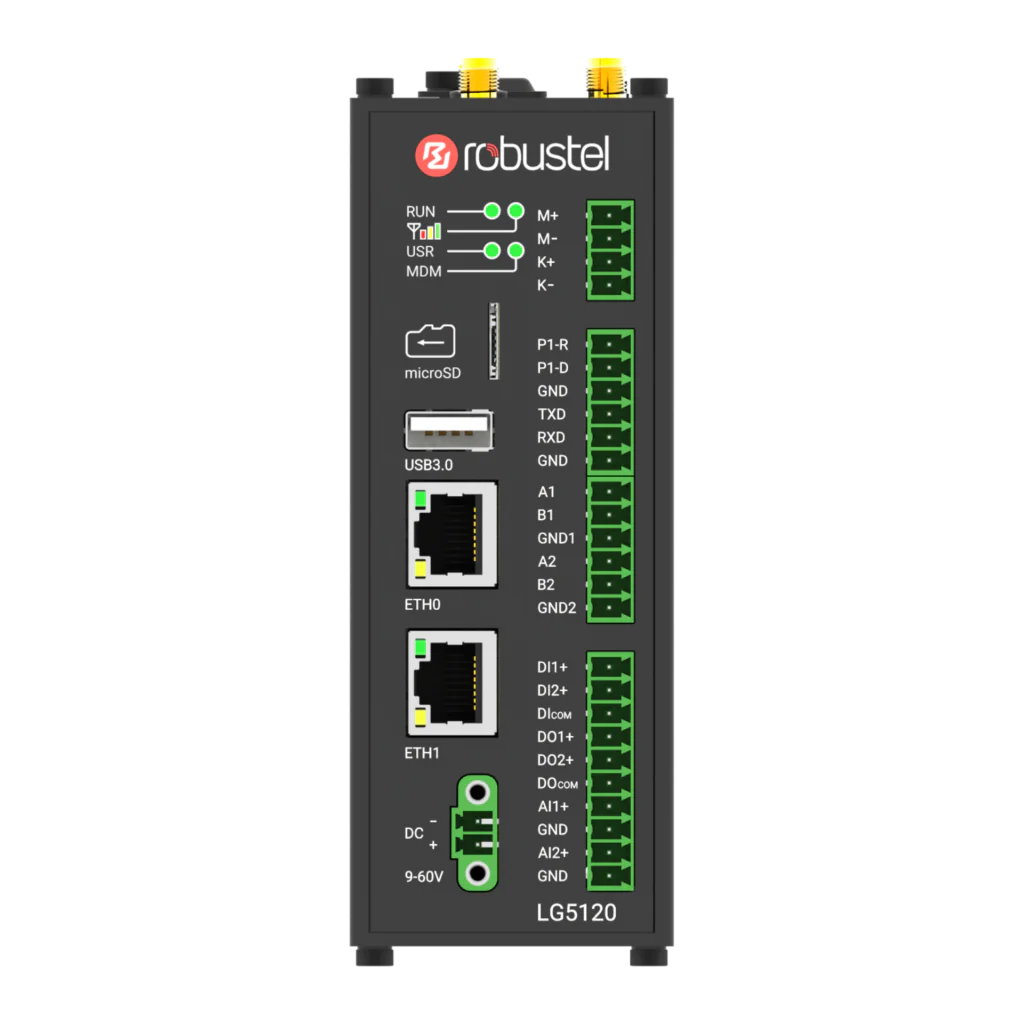

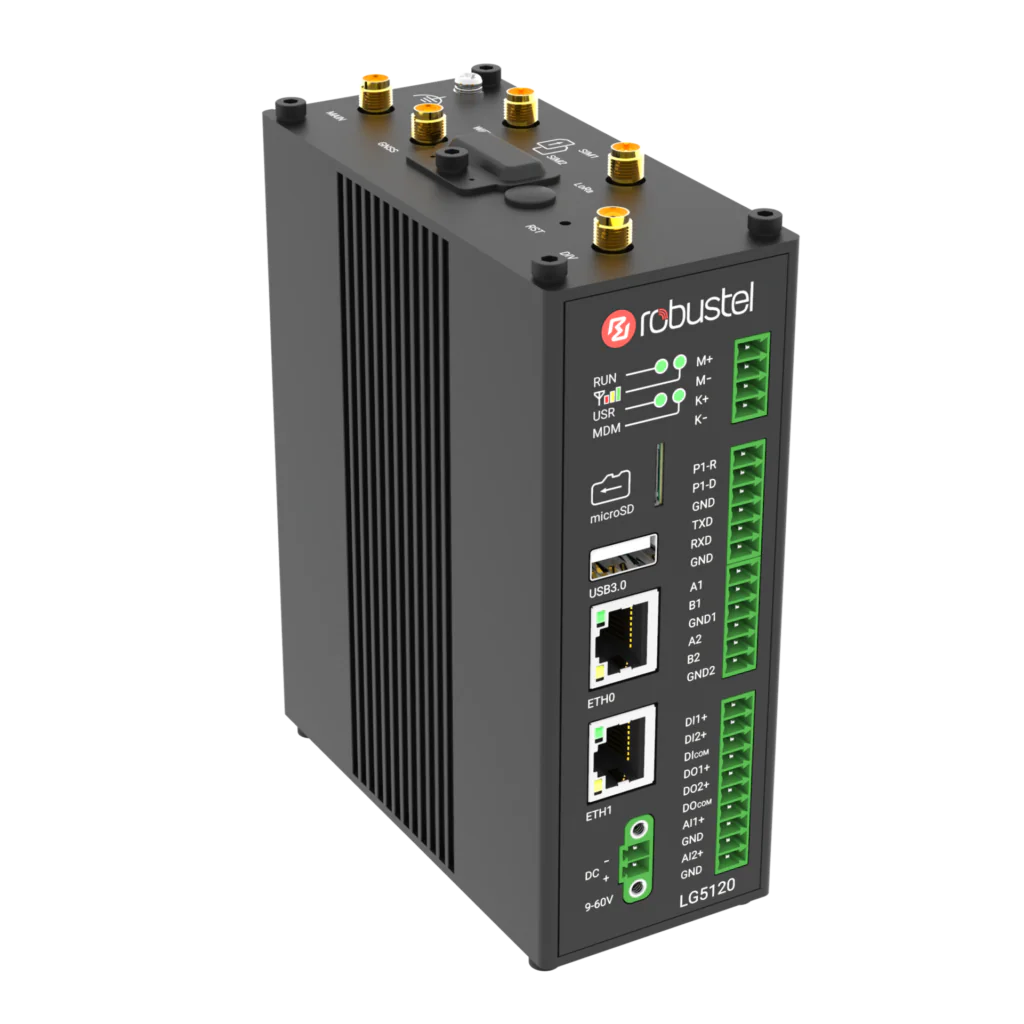

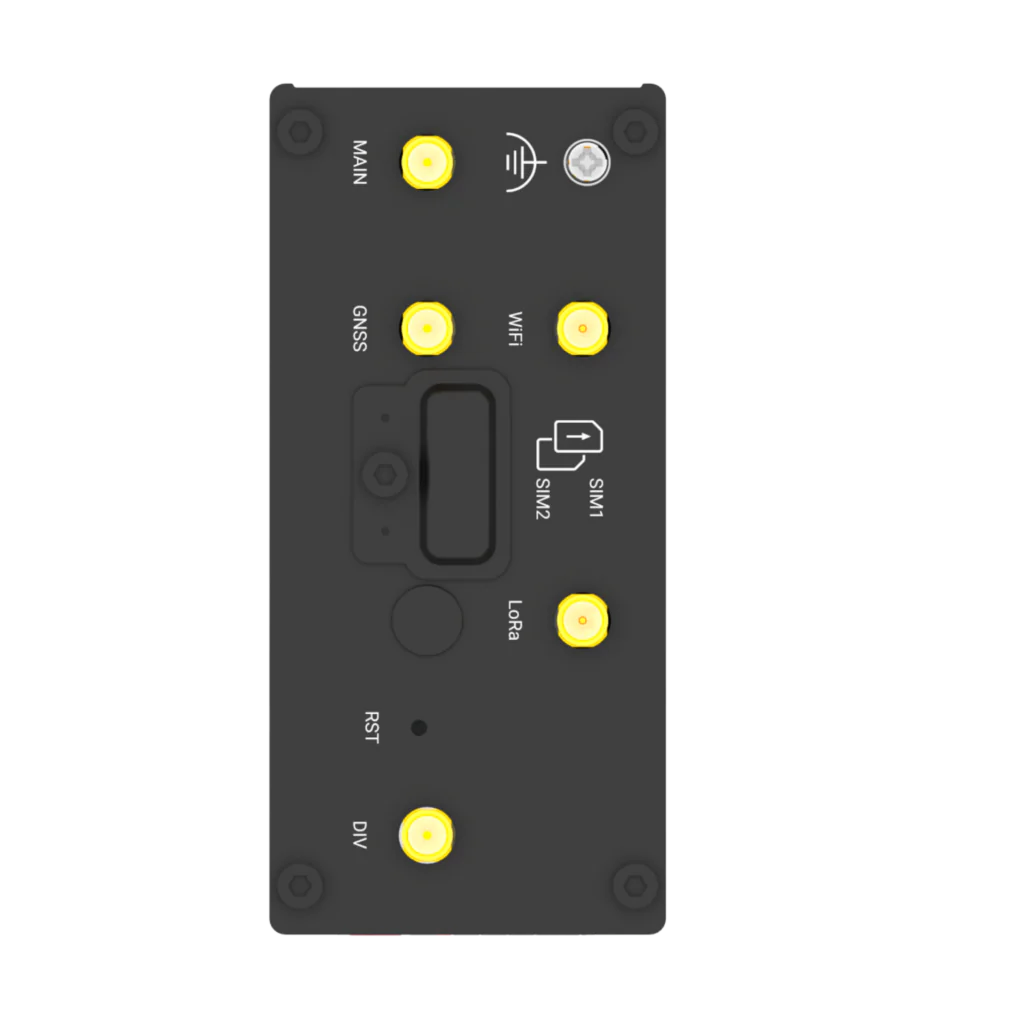

Robustel LG5120 Facility Edge Gateway for LoRaWAN with KNX, BACnet, M-Bus, Wi-Fi 6, 4G/LTE and Integrated LNS

Robustel LG5120 is an advanced facility edge gateway for LoRaWAN deployments where wireless sensors need to work alongside KNX, BACnet, Modbus, M-Bus, P1/DSMR, I/O and existing BMS or SCADA systems. With integrated ChirpStack LNS, LoRa Basics™ Station support, E2C Trinity Facility, Wi-Fi 6, 4G/LTE and local automation capability, it helps turn building data into usable operational workflows.

Description

Description

The LG5120 is built for smart building and facility projects where LoRaWAN is only one part of a wider building automation environment. In many commercial buildings, campuses, hospitals, data centres and multi-tenant facilities, wireless sensors must work alongside existing KNX, BACnet, Modbus, M-Bus, P1/DSMR, metering, HVAC, lighting, room control and BMS infrastructure. The LG5120 brings these systems together at the edge, helping facilities teams and system integrators turn fragmented building data into usable operational workflows.

Where simple gateways focus on moving sensor packets upstream, the LG5120 is designed to collect, normalise, visualise, automate and forward building-side data from multiple sources. LoRaWAN sensors can be used for air quality, occupancy, temperature, humidity, leak detection, energy monitoring and retrofit sensing, while wired building systems can be connected through KNX TP, KNXnet/IP, BACnet, Modbus, M-Bus, P1/DSMR, RS-485, RS-232, analog inputs and digital I/O. This makes the LG5120 suitable for projects where wireless sensing needs to fit into the operational reality of an existing facility, rather than sit in a separate data silo.

The LG5120 supports flexible LoRaWAN architectures. It can forward sensor traffic to an external LoRaWAN Network Server using LoRa Basics™ Station or UDP packet forwarding, or support more self-contained deployments using an embedded ChirpStack-based LNS on the gateway. This gives partners and customers the freedom to use an external LNS where the wider ecosystem is already defined, or a local LNS where site-level control, reduced dependency, faster commissioning or private network operation are more important.

E2C Trinity Facility gives the LG5120 its building-focused edge integration layer. It is designed to help collect data from LoRaWAN sensors, KNX devices, M-Bus meters, Modbus equipment, BACnet systems, P1/DSMR smart meters and local I/O, then transform that data into practical workflows for dashboards, alarms, automation rules, Node-RED orchestration, MQTT, BACnet/IP, OPC UA, BMS, SCADA and cloud platforms. Supported LoRaWAN devices can be onboarded through codec-based workflows, reducing the manual payload decoding and mapping effort often required in wireless sensor projects.

For building automation projects, the LG5120 helps bridge the gap between wireless sensing and established facilities infrastructure. KNX integration supports lighting, HVAC, room control and building-side device networks. M-Bus and P1/DSMR support metering and energy data acquisition. BACnet and Modbus support integration with plant equipment, controllers and supervisory systems. This enables LoRaWAN data to become part of the wider facility control and reporting environment, rather than remaining isolated in a standalone IoT application.

The LG5120 is powered by a quad-core ARM Cortex-A53 processor, 8 GB RAM, 64 GB eMMC storage and RobustOS Pro based on Debian Linux. This gives the gateway the compute and software foundation for local processing, automation, visualisation, data handling and application hosting. An integrated NPU provides additional headroom for AI-assisted edge workloads where project requirements justify more advanced processing at the facility edge.

Backhaul and deployment flexibility are built in. 4G/LTE cellular, dual SIM support, Wi-Fi 6 and dual Gigabit Ethernet give installers multiple ways to connect sites without relying on a single network path. Smart Roaming can help cellular deployments select the best available network when compatible roaming SIMs are used, improving resilience in locations where carrier performance varies. DIN rail, wall and desktop mounting options make the LG5120 suitable for plant rooms, control panels, risers, communications rooms and facility equipment areas.

Remote management through RCMS helps teams deploy, monitor and maintain LG5120 gateway fleets without routine site visits. Operations teams can review device status, manage configuration, perform firmware updates, troubleshoot remotely and use secure access tools to support distributed facilities. For partners managing building portfolios or multi-site estates, this helps reduce support friction and makes ongoing lifecycle management more scalable.

The LG5120 is the right choice when a LoRaWAN deployment needs to become part of a broader building automation architecture. It is designed for projects where wireless sensors, meters, building protocols, dashboards, alarms, local logic and BMS/SCADA integration all need to work together through a single advanced facility edge gateway.

Key Specifications

  • LoRaWAN gateway architecture: External LNS via LoRa Basics™ Station or UDP packet forwarding, plus embedded ChirpStack-based LNS
  • LoRaWAN device classes: Class A and Class C
  • LoRa radio: 8-channel simultaneous receive, based on Semtech SX1302 LoRa Core™ gateway technology
  • Edge software: E2C Trinity Facility with building protocol integration, dashboards, alarms, automation workflows and codec-based sensor onboarding
  • Operating system: RobustOS Pro based on Debian Linux
  • CPU: Quad-core ARM Cortex-A53 at 1.6 GHz
  • AI acceleration: Integrated NPU rated at 2.3 TOPS
  • Memory and storage: 8 GB DDR4 RAM, 64 GB eMMC flash
  • Backhaul: 4G/LTE, Ethernet and Wi-Fi 6
  • Cellular: Dual 2FF physical SIM slots
  • Ethernet: 2 x 10/100/1000 Mbps Ethernet ports
  • Building protocols and interfaces: KNX TP, KNXnet/IP, M-Bus, P1/DSMR, BACnet, Modbus and OPC UA support
  • Serial: 2 x isolated RS-485 ports and 1 x RS-232 port
  • I/O: 2 x digital inputs, 2 x digital outputs and 2 x software-configurable analog inputs
  • Expansion and service interfaces: USB 3.0, microSD, reset button and hardware watchdog
  • Remote management: RCMS device monitoring, configuration, firmware updates, troubleshooting and secure remote access
  • Connectivity optimisation: Smart Roaming support for compatible roaming SIM deployments
  • Regional variants: EU868, AU915, US915 and AS923
  • Operating temperature: -40°C to +70°C
  • Housing and mounting: IP30 metal housing with desktop, wall and DIN rail mounting options

Markets

Vertical Markets

    • Smart Buildings / Facilities Management
    • Smart Industry / Industrial IoT
    • Smart Logistics
    • Other

Regional Markets

    • Africa
    • Asia/South Pacific
    • Europe
    • Middle East
    • North America
      • United States
    • Oceana
    • South/Latin America
    • Worldwide

Regulatory Certifications

    • CE (Europe)
    • FCC (United States)
    • IC (Canada)
    • RCM (Australia)

About Robustel

About Robustel

Geographical Focus

  • Africa
  • Asia/South Pacific
  • Europe
  • Middle East
  • North America
  • South America
  • Worldwide

Vertical Markets

  • Smart Agriculture
  • Smart Buildings / Facilities Management
  • Smart Cities
  • Smart Industry
  • Smart Logistics / Tracking
  • Smart Metering / Utilities
