Oyster Battery Powered GPS Asset Tracker


Long-life battery-powered GPS for monitoring non-powered assets on LoRaWAN® Networks

- High-precision GPS/GLONASS tracking device
- Powered by 3 x AA Batteries with up to 5 years battery life
- Easy to install and conceal with ultra-rugged and weatherproof IP67 Housing
- Accelerometer for Smart Movement Based Tracking
- Configurable parameters to fit any tracking application
- Manage device firmware updates and parameters via a USB configuration cable and app
- Easy integration with comprehensive documentation and a flexible and open payload format

LoRaWAN Specification
1.0.2
Tags
GPS
Asset Tracker
Battery Powered GPS

Product / service details

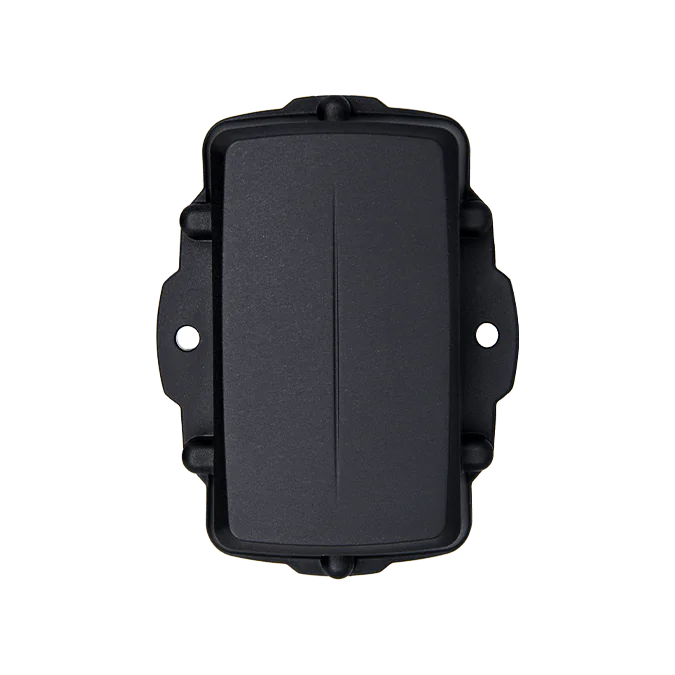

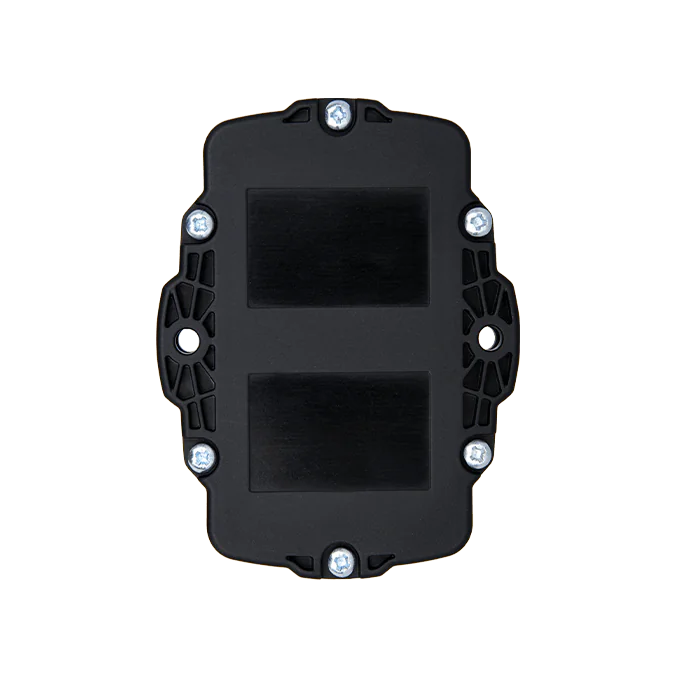

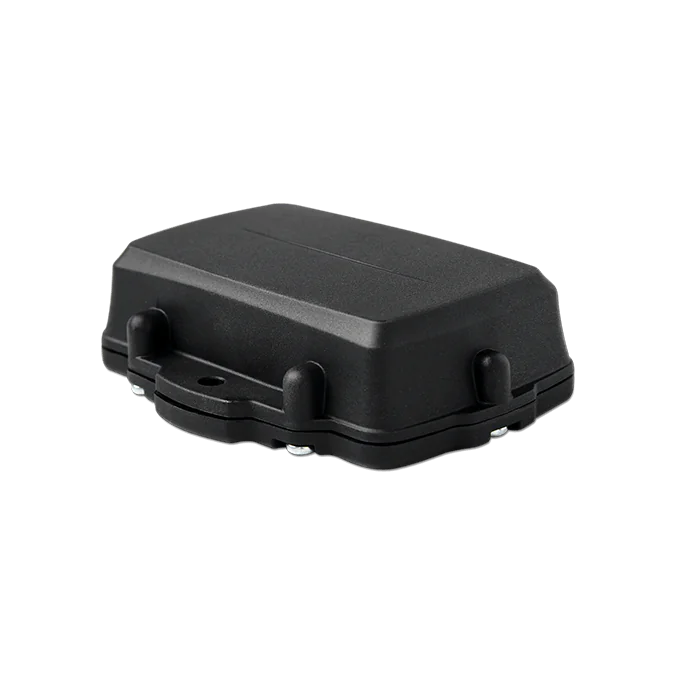

The Oyster is a compact, rugged GPS tracking device that has been designed for tracking any non-powered asset such as containers, trailers, skip bins, and other assets where super-long battery life is required without sacrificing the frequency of updates and performance.

The IP67 rated housing is rugged and UV stable, so the Oyster can be mounted on assets that are exposed to rain, dust and marine conditions.

By utilising the latest technology, the Oyster can operate in ultra-low power modes, and with an incredible battery life of up to 5 years the Oyster can be attached to assets and tracked without needing to change batteries. The Oyster has built-in antennas for GPS reception and for LoRaWAN communication, a 3D accelerometer, a high-performance GPS that can track both GPS and GLONASS satellites simultaneously and flash memory for storing non-volatile information.

The Oyster uses the LoRaWAN technology to give you coverage of your assets at a low data cost. The Oyster is available in 868MHz and 915MHz versions to cater for the various LoRaWAN regions around the world.

It is also available in cellular 2G, 3G and new Oyster2 4G Cat-M1 and NB-IoT versions.

Environmental protection
IP67
