ZENNER
INDOOR T+H SENSOR
ZENNER INDOOR T+H SENSOR Temperature and humidity sensor with wireless M-Bus and LoRaWAN® interface
LoRa Alliance®
The leading open global standard for secure, carrier-grade IoT LPWAN connectivity.
LoRaWAN® Marketplace
Description
Description

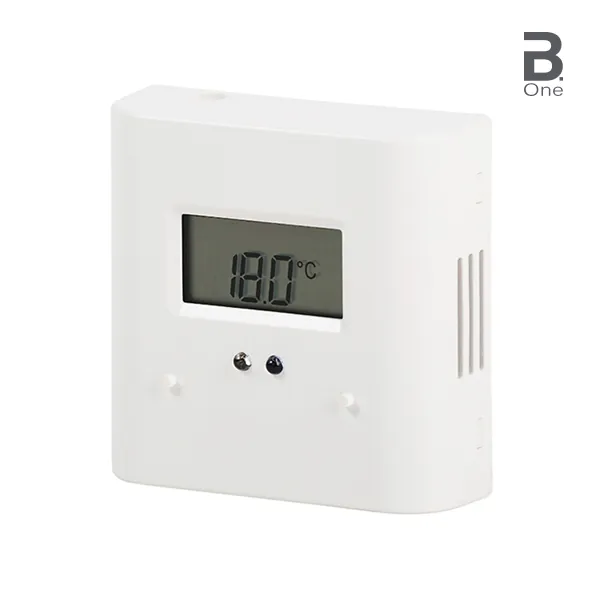

The Indoor T+H Sensor determines the temperature and relative humidity of indoor spaces. The sensor supports the user in optimizing the heating and ventilation behavior. The current temperature and humidity values can be read at any time on the display of the device. The data recorded and stored by the device can be transmitted to downstream recording systems using wireless M-Bus or LoRaWAN® radio technology. This creates transparency with regard to the heating and ventilation behavior in order to be able to derive possible efficiency and optimization measures. For example, this data can be used to prevent mold growth.
The temperature and humidity are measured inside the device every three minutes. The average value of the last quarter of an hour is determined from the measured values, saved and summed up in the register of the respective temperature or humidity range. The radio transmission takes place every 20 seconds for wireless M-Bus and every hour for LoRaWAN®.
Extended Features
Extended Features
ZENNER Indoor T+H sensor
PERFORMANCE CHARACTERISTICS IN OVERVIEW
- Measurement, display and data transmission of temperature and humidity
- Data transmission via wireless M-Bus or LoRaWAN®
- Battery life up to 10 years + storage reserve
- Internal antenna
- Plug & Play – start-up mode
- Optical interface for configuration and readout of stored data
- Wall mounting with sealing option
SENSORS
- Temperature measurement range: -20°C to 50°C
- Measuring accuracy: ±0.3°C in the range from 5°C to 50°C
- Humidity measurement range: 0% to 100% RH
- Measuring accuracy: ±2% RH in the range from 20% to 80%
- Resolution of the measured values: 0.1°C and 0.1% RH
| Communication Technologies |
|
Markets
Vertical Markets
- Smart Buildings / Facilities Management
- Other Smart Buildings
- Smart Cities
- Building Management
Regional Markets
- Africa
- Kenya
- Morocco
- Tunisia
- Europe
- Middle East
- Bahrain
- Iran
- Kuwait
- Oman
- Qatar
- Saudi Arabia
- United Arab Emirates
Regulatory Certifications
- CE (Europe)
- RED (Europe)
