The integrated radio interface for data transmission is pre-configured at the factory to either wireless M-Bus or LoRaWAN^®, depending on the customer’s requirements. This ensures the highest possible flexibility. The B.One Device Manager Basic App allows utilities to effortlessly switch wireless technology, depending on their infrastructure requirements.

The parallel wireless technology is a particular highlight, and enables the IUWS B.One to send measurement data via wireless M-Bus and LoRaWAN^® simultaneously. Regardless of the wireless technology used, this feature guarantees future-proof, seamless integration into existing and new data acquisition systems.

The IUWS B.One ultrasonic water meter can be installed in any installation position: Riser pipe, downpipe or even overhead installation are possible.

All materials used to produce IUWS B.One for the drinking water sector comply with the latest standards, guidelines, the strict requirements of Germany’s regulation for drinking water, and the assessment principles of Germany’s Federal Environment Agency (UBA).

Extended Features

Performance characteristics in overview

Ultrasonic technology
Any installation position (even “head down”)
Parallel operation of wM-Bus & LoRaWAN^® radio possible
Switchable radio technology
Transmission of the medium and ambient temperature in the wM-Bus radio protocol (depending on the selected radio scenario)
Optionally available as a lead-free version (ECO-Brass CW724R)
Highest precision and reliability even in case of low flow rates
Insensitive to deposits and particles
Battery-operated, electronic LCD register with galvanically isolated NFC interface
Smart Metering functions (Warnings, alarms)
Retrofitting of an external NDC radio module (e.g. for shaft meters) possible
Certified according to DVGW guideline W 406
OMS certification for BSI-compliant smart meter gateway connection

Applications

For consumption measuring of drinking water and unpolluted service water up to 50 °C

AMR options

Integrated wM-Bus or LoRaWAN^® radio interface
NFC interface (= Near Field Data Capture) for connecting an external NDC module and for device configuration
Readout and configuration app (B.One Device Manager Basic)

Readout options of the measuring device via the NFC interface (Near Field Communication)

Measuring instrument ID (serial number)
Current (netted) consumption display or total volume in the event of an overflow
Date / time
Firmware version
Up to 15 previous month’s values
Temperature
Key date / Key date volume
Forward flow volume / Return flow volume
Alarms or error messages
Battery end

Datalogger – values in entries (max.)

Due date values: 3
Monthly- and half monthly values: 53
Daily values: 460
Hourly values: 1.440
Backward flow: 50
Volume analysis: 50
Events: 64
Short-term logger for the last 3 days: 12

Product options

Measuring Principle	Ultrasonic Meters
Register	Electronic
Nominal Flow Q3 (≈ Qn)	Q3=1,6 (≈ Qn 1) Q3=2,5 (≈ Qn 1,5) Q3=4 (≈ Qn 2,5) Q3=10 (≈ Qn 6) Q3=16 (≈ Qn 10) Q3=25 (≈ Qn 15)
Nominal Diameter DN (mm)	DN 15 DN 20 DN 25 DN 32 DN 40 DN 50
Nominal Diameter (inch)	1/2″ 3/4″ 1″ 1 1/4″ 1 1/2″ 2″
Length without connectors	105 mm 110 mm 115 mm 130 mm 145 mm 150 mm 160 mm 165 mm 170 mm 175 mm 190 mm 200 mm 260 mm 270 mm 300 mm
Metrological Class horizontal (max.)	R 500
Communication Technologies	Radio via LoRaWAN® Radio via wireless M-Bus
Temperature	Cold water up to 50 °C
Operating pressure (max.)	MAP 16

Tech Specs

Supported Regional Parameters

EU863-870

Environment - IP Rating

Dust
Indoor
Moisture

Supported Classes

Class A (Basic)

LoRaWAN Specification

1.0.2

Markets

Vertical Markets

Smart Buildings / Facilities Management
Smart Homes / Neighborhood
Smart Water & Energies

Regional Markets

Africa
- Kenya
- Morocco
- Tunisia
Europe
Middle East
- Bahrain
- Iran
- Iraq
- Jordan
- Kuwait
- Lebanon
- Oman
- Palestine
- Qatar
- Saudi Arabia
- Syria
- United Arab Emirates
- Yemen

Regulatory Certifications

CE (Europe)
RED (Europe)

About ZENNER

Geographical Focus

Worldwide

Vertical Markets

Smart Buildings / Facilities Management
Smart Cities
Smart Industry
Smart Metering / Utilities

Contacts

Commercial Contact
Rsanders@zennerusa.com; boris.stoeckermann@minol.com

Technical Contact
Marcus.Kirchdoerfer@zenner-connect.com

Website

https://www.zenner.com

View Member Profile

Technical Committee	Marketing Committee	Certification Committee
– Academia Work Group	– Analyst Program Task Force	– Gateway Test and Measurement Guidelines Task Force
– App Payload Codec API Task Force	– Device & Solution Makers Forum	– LCTT DevOps Work Group
– Backend Interface Task Force	– Network Capacity Task Force	– LoRaWAN Interoperability Work Group
– CSMA Task Force	– Network Operators Forum
– DNS Task Force	– Smart Cities and Buildings Work Group
– Device Migration Task Force	– Smart Industry Work Group
– FUOTA	– Smart Water & Energies Work Group
– GS1 Task Force
– Link Layer Task Force
– LoRaWAN over Satellites Task Force
– NS-GW Interface Task Force
– Network Discovery Task Force
– Plug-and-Play Task Force
– PolDev Task Force
– Regional Parameters Work Group
– Relay/D2D Task Force
– Security Work Group

IUWS B.One

Website

Documentation

Description

Description

Extended Features

Extended Features

Performance characteristics in overview

Applications

AMR options

Readout options of the measuring device via the NFC interface (Near Field Communication)

Datalogger – values in entries (max.)

Product options

Tech Specs

Supported Regional Parameters

Environment - IP Rating

Supported Classes

LoRaWAN Specification

Markets

Vertical Markets

Regional Markets

Regulatory Certifications

About ZENNER

About ZENNER

Geographical Focus

Vertical Markets

Contacts

Website

Videos

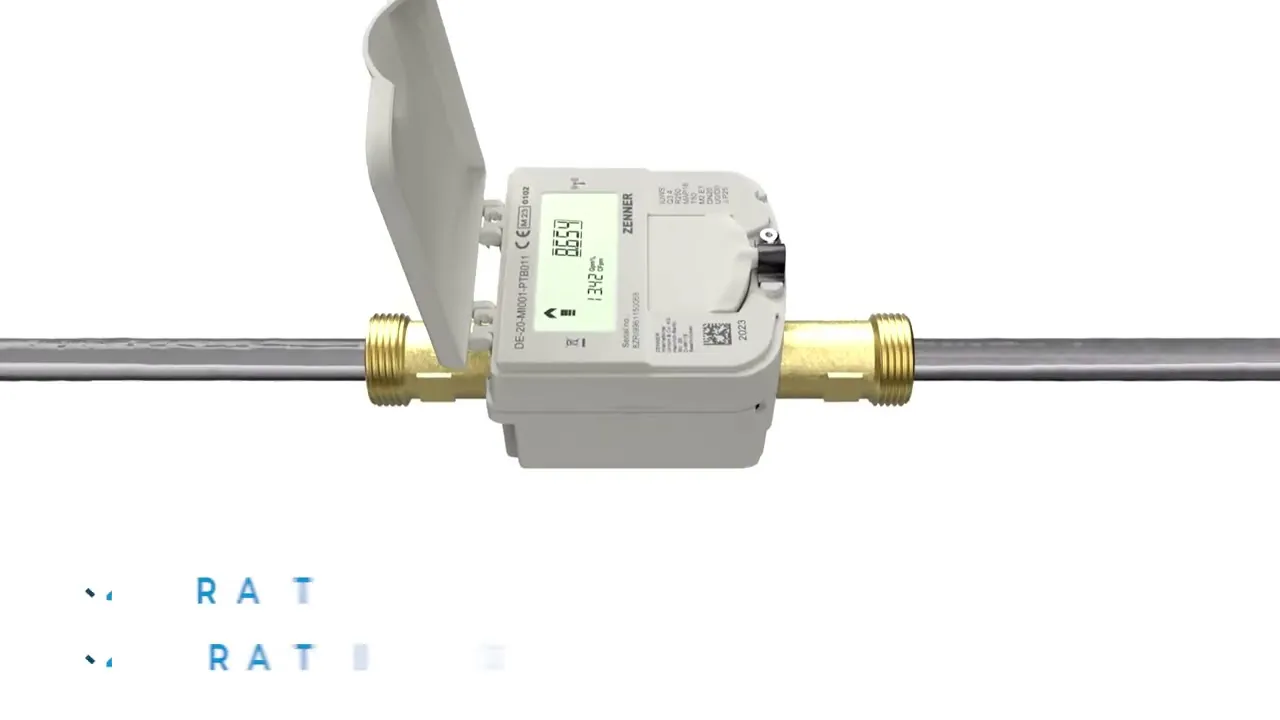

The new Ultrasonic Water Meter IUWS from ZENNER (Subtitles in DE, FR)
