NDC B.One Communication Module

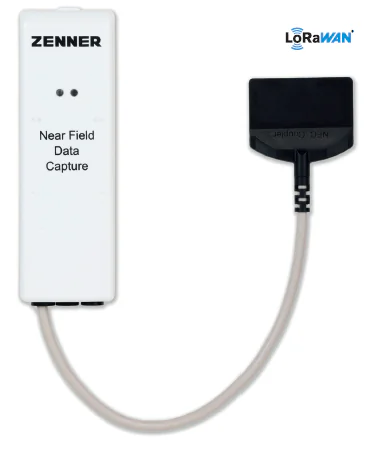

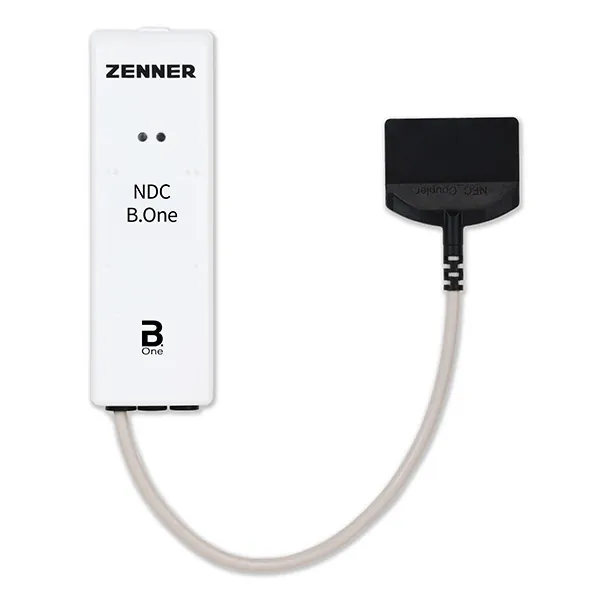

NDC B.One-communication module with wireless M-Bus or LoRaWAN® radio interface The NDC B.One communication module (Near Field Data Capture module) with wireless M-Bus or LoRaWAN® interface is used for remote reading of the ZENNER ultrasonic water meter series IUW / IUWS B.One.

Website

https://www.zenner.com

Documentation

Data sheet NDC B.One communication module pdf (138 KB)

File type: application/pdf

File size: 134.85 KB

Declaration of conformity NDC B.One communication module pdf (106 KB)

File type: application/pdf

File size: 103.77 KB

Installation and operating instructions NDC B.One communication module pdf (13752 KB)

File type: application/pdf

File size: 13429.63 KB

Technical description IUWS B.One/IUW pdf (3107 KB)

File type: application/pdf

File size: 3034.37 KB

Description

The NDC B.One queries the consumption and status information via the NFC interface of the respective meter and transmits this wirelessly. The data is forwarded unchanged from the NDC B.One to the gateways or wireless M-Bus receivers within range.

An NDC B.One module is always required for radio reading of the IUW ultrasonic bulk water meters. It functions as an external radio module and has a cable length of three or ten meters. The IUWS ultrasonic water meter is equipped with an integrated radio module. Optionally, the NDC B.One module can be used to optimize the radio range at difficult installation points. Depending on the version, transmission interval and environmental conditions, the module can achieve a battery life of up to 12 years.

PERFORMANCE CHARACTERISTICS IN OVERVIEW

Composite housing with wall mounting bracket
Battery operation (independent of the water meter)
Flood-proof (protection class IP68)
Optical interface (IrDA)
Supports both LoRaWAN^® and wireless M-Bus and automatically adopts the settings of the connected water meter

VARIANTS

Standard variant with a three meter cable length for connection to IUW / IUWS without breaking the meter’s calibration seal
Optionally also available as a variant with a ten meter cable length

SMART METERING FUNCTIONS (depending on the respective meter configuration)

Leakage detection
Pipe burst warning
Detection incorrect installation
Reverse water flow detection
Meter oversized detection
Meter undersized detection
Meter stop detection
Meter Dry detection
Frost warning
Battery warning

Tech Specs

Supported Regional Parameters

EU863-870

Environment - IP Rating

Harsh
Moisture

Supported Classes

Class A (Basic)

LoRaWAN Specification

1.0.2

Markets

Vertical Markets

Smart Buildings / Facilities Management
Smart Homes / Neighborhood
Smart Water & Energies

Regional Markets

Africa
- Kenya
- Morocco
- Tunisia
Europe
Middle East
- Bahrain
- Iran
- Iraq
- Jordan
- Kuwait
- Lebanon
- Oman
- Palestine
- Qatar
- Saudi Arabia
- Syria
- United Arab Emirates
- Yemen

Regulatory Certifications

CE (Europe)
RED (Europe)

About ZENNER

Geographical Focus

Worldwide

Vertical Markets

Smart Buildings / Facilities Management
Smart Cities
Smart Industry
Smart Metering / Utilities

Contacts

Commercial Contact
Rsanders@zennerusa.com; boris.stoeckermann@minol.com

Technical Contact
Marcus.Kirchdoerfer@zenner-connect.com

Website

https://www.zenner.com
